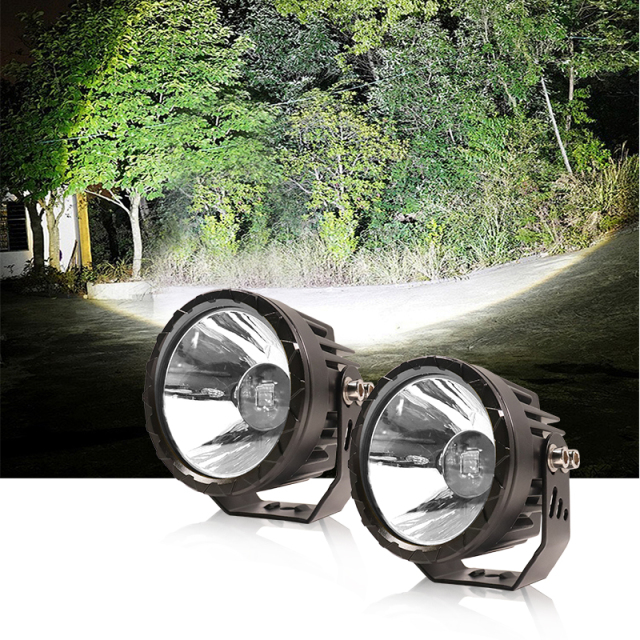

Product Overview

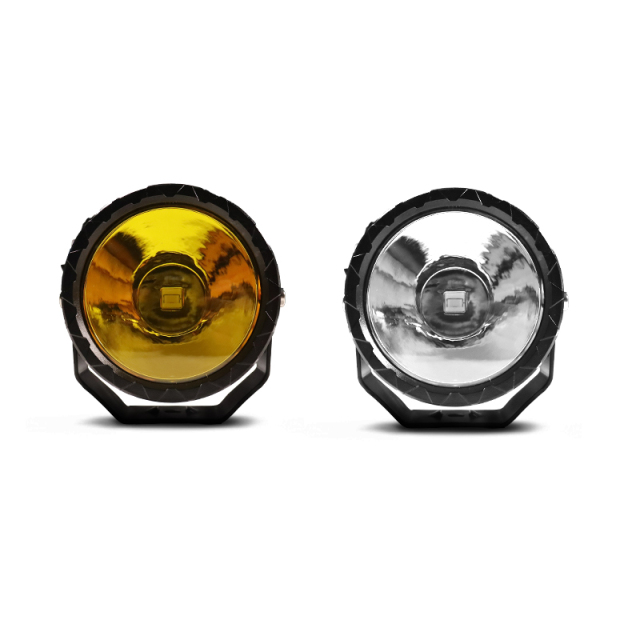

One housing, two beam colours, one mounting point. JOPOWER 50W 3.5 Inch White Yellow LED Fog Driving Pod Lights put a yellow fog beam and a white driving beam in the same 3.5-inch pod, so a truck, SUV, Jeep, ATV or 4x4 does not need two separate lamps on the bumper to handle thick weather and open road. The yellow side runs through an upgraded PC lens molded for penetration, which is what lets it push a dense beam into fog, rain, snow and dust. The white side takes over when the air is clear and you want more reach than the factory fog lamp gives. This is an auxiliary light, not a headlight replacement. Installers mount it below the headlight line, on a bull bar, roof rack, A-pillar bracket or rear work position, and use it to pick up the shoulder, the ditch and the road edge a low-mounted fog lamp leaves dark. Because the whole unit is a sealed 3.5-inch pod, it also drops into an existing off road led light bar array as a modular add-on, or replaces one failed lamp without pulling the wiring loom apart. As led light bar manufacturers, we build every offroad led lights unit to that same setup, which is why a lens tint or a sealing standard stays steady from one production run to the next.
Performance Advantages
- Yellow that holds its shape in bad weather — the upgraded PC lens is molded for penetration rather than tinted after the fact, so the beam stays dense and readable in fog, rain, sleet and dust instead of smearing across the windscreen.
- White for the open road — the second colour throws further and brighter for unlit highway work, which is the gap most drivers are trying to close when they fit a led light bar for trucks to a long-haul unit.
- Spotlight beam with a widened lamp cup — the reflector concentrates light for distance, then fans it sideways a little, so what reaches the road is usable 4x4 off-road lights coverage across the shoulder and near verge rather than one bright dot straight ahead.
- Two colours from one bracket — no second lamp, no second set of holes in the bumper, and no doubling up on relays and switches.
- Low current draw — the pod pulls little current for its output, so a four-lamp install stays inside a standard charging system instead of forcing the alternator and wiring upgrade a set of big halogen lamps would demand.
- Built to repeat — as led light bar manufacturers, we keep the pods on standing tooling with the same lens mold and the same inspection steps each run, so a reorder matches the units already bolted to a customer's vehicle.
Material & Build

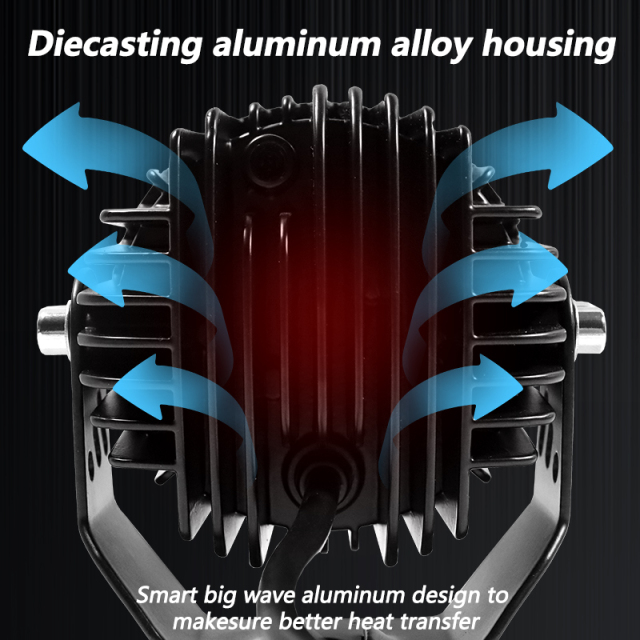

Die-cast aluminium rather than stamped steel or plastic — a housing choice that matters on 4x4 off-road lights, where vibration and stone strikes are routine. The housing is cast with fins across the back and sides, so far more surface meets moving air than a smooth can would allow, and heat-conducting silicone gel sits between the LED board and the shell to move warmth off the chip. That path is what carries the rated life past 50,000 hours; a pod that traps heat goes dim long before its LEDs fail outright.
The lens is shock-proof polycarbonate rather than glass, so a stone off a gravel road chips the surface instead of shattering it. On the yellow side the lens is molded for light penetration — not a coloured film, not a painted cap — so the tint does not fade after a summer on a hot bumper. Lens to housing, the joint is gasketed and rated IP67: dust-tight, and able to sit in a metre of water for half an hour without taking on moisture behind the glass.
Bolts, washers and the U-shaped bracket are stainless steel, chosen so the aim you set does not creep after a season of washboard tracks, mud and road salt. We are led light bar manufacturers first, so the lens, the housing and the bracket are produced in our own workshops rather than bought in as finished assemblies, which is why the finish, thread quality and sealing on this pod match the rest of the offroad led lights we ship.
Vehicle Compatibility & Mounting
- Universal where it counts. The pod mounts on a U-bracket with a single pivot bolt, the same arrangement used by most 3.5-inch auxiliary lamps, so it fits brackets already drilled for a similar light and swaps into a bull bar, A-pillar mount, roof rack or rear bar without redrilling. Two-conductor cable means it runs off a relay and switch wiring or off a spare channel on an existing switch panel.
- The vehicles we see these on run from pickups and SUVs to Jeeps, ATVs, UTVs, tractors and site plant — daily drivers and dedicated 4x4 off-road lights builds alike, in practice anything with a 12V or 24V auxiliary circuit. Because the bracket pivots through a wide arc, the same pod can sit low and wide for fog work on a truck bumper or angle up for distance on a roof rack. A pair on a front bar gives an even spread; four, switched in pairs, let a driver work in yellow alone when the weather closes in and add white as the road opens out.
- Check two things before ordering. First, the vehicle's system voltage against the pod's rated input, and the rating of the circuit you plan to tap; if anything does not line up, tell us before the order goes in. Second, the clearance behind the mounting point, because the bracket bolt and the cable exiting the rear of the housing both need room. If the pod is going into an existing off road led light bar array, measure the bolt spacing on the current bracket before you commit.

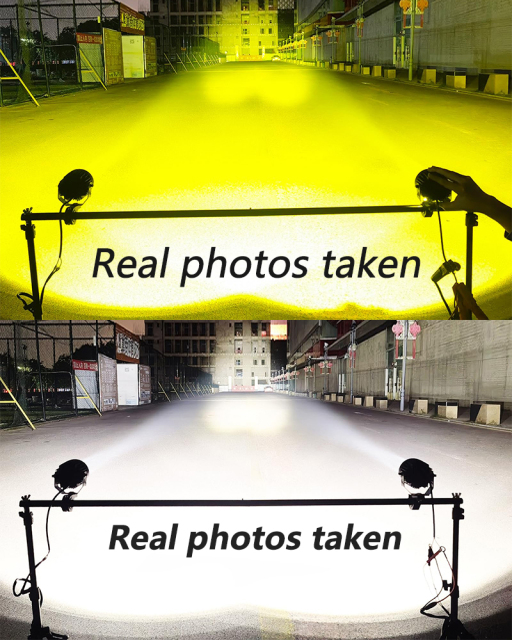

- Fog, sleet and freezing rain on the commute — yellow light at bumper height picks out lane markings, the verge and the vehicle ahead without throwing glare back at you the way a white beam does in thick weather.
- Long night hauls on unlit highways — the white side reaches past the headlight cut-off for the stretches between towns where nothing else lights the road.
- Forestry, farm and construction work — pods on tractors, loaders and site pickups light the field edge, the loading area and the track back to the gate when the day runs past dusk.
- Trail, recovery and winch work — a pair on the front bar or A-pillar gives spotter and driver a clear view of the line, the drop-off and the winch point when a 4x4 off-road lights setup has to earn its keep after dark.
- Jeep and overland builds — the 3.5-inch footprint suits A-pillar brackets, bull bars and roof racks, and the pods sit where a jeep led light bar build usually leaves a gap.
- Utility and municipal fleets — service vans and maintenance trucks that already run led driving lights get a sealed add-on that can be aimed at the work rather than at the road.
- Rear and camp lighting — mounted on a rack or rear bar, the white beam lights a trailer bed, a work platform or a camp kitchen, and the sealed housing means it can stay out in the rain.

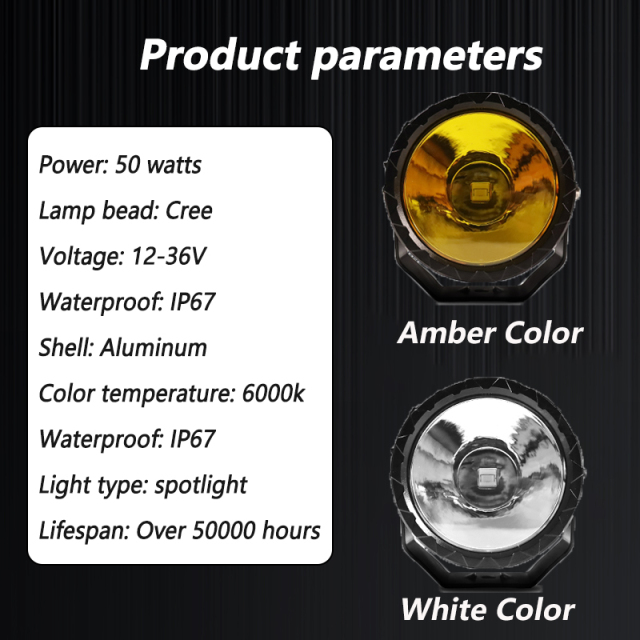

Specifications
| Power | 50 W per pod |
| LED chips | Cree |
| Voltage | 12-36 V DC |
| Colour temperature | 6000 K on the white beam |
| Light type | Spotlight, widened lamp cup |
| Pod size | 3.5 inch |
| Housing | Die-cast aluminium with cooling fins |
| Lens | Upgraded shock-proof PC lens |
| Bracket | Stainless steel U-bracket with pivot bolt |
| Waterproof rating | IP67 — dust-tight, immersion up to 1 m for 30 minutes |
| Rated life | Over 50,000 hours |
| Fasteners | Stainless steel bolts and washers |
Installation Steps
- Park on level ground, disconnect the negative battery terminal, and decide where the switch and relay will live before you drill anything.
- Offer the pod up to the mounting point first. Check that the bracket bolt and the cable exiting the rear of the housing both have clearance, and that the lens is not fouled by the bumper or grille.
- Mark and drill at the bracket's bolt spacing, then touch the bare metal with primer or paint so rust does not start under the washer.
- Bolt the U-bracket on loosely, hang the pod on it, and set the aim before the final tighten — the pivot bolt lets you swing the light through a wide arc.
- Run the two-conductor cable along the existing loom, keep it away from the exhaust and any moving parts, and pass it through a grommet wherever it crosses a panel.
- Wire through a relay and a correctly rated fuse rather than straight off the switch. If the vehicle already runs a pair of led driving lights, check whether the existing relay and switch gear has a spare channel before adding new ones.
- Aim at night against a wall or a flat stretch of ground: yellow sits low and wide for fog, white goes slightly higher for distance, and both want to clear the bonnet line. Re-check the bolts after the first week of driving.
Ordering & Delivery
- Volume and custom work — logo, packaging, housing finish and specification changes are handled case by case. Tell your sales contact what you need and they will confirm what is possible and how long production takes.
- One order, full range — light bars, pods, work lights, whip lights and switch panels all come out of the same plant, so a mixed order can cover a whole lighting catalogue.
- Shipping — 7-day fast shipping on stock items; confirm the current lead time for your quantity with your sales contact.
- Packing — units ship in a plain white box as standard, and consumer-ready packaging can be arranged to match a private label. Confirm artwork details with your sales contact before production.
- Payment, minimum quantity and freight terms — quoted per order. Ask your sales contact for the terms that apply to your destination and volume before you commit.
- Paperwork — tell your sales contact which market the goods are going to and ask for the certification and test documents that apply there.
- Repeat business — a large share of our volume comes from off road led light bar suppliers, auto parts stores and fleets reordering the same pods season after season, which is why the tooling for this model stays in place.
Scale & Supply Capability
JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.
FAQ
Do these pod lights fit different off-road vehicles?
Trucks, SUVs, Jeeps, ATVs, UTVs and light plant all take the same pod. The U-bracket pivots on a single bolt and matches the spacing most 3.5-inch auxiliary lamps use, so it usually bolts to a bull bar, A-pillar mount, roof rack or rear bar without redrilling. Two-conductor wiring lets it run off a relay and switch wiring loom or a spare channel on an existing panel. On a pickup it mounts to the same bracket points most led light bar for trucks kits use, and a jeep led light bar build typically adds it on the A-pillar or the front bar. Send us the vehicle and the mounting point and we will tell you what spacing to measure.
What are the housing, lens and brackets made of?
The housing is die-cast aluminium with cooling fins, the lens is shock-proof PC rather than glass, and the U-bracket, bolts and washers are all stainless steel, so nothing in the mount rusts or seizes. The yellow lens is molded for penetration rather than tinted, which is why the colour survives heat and UV. It is the same material stack we use across the offroad led lights we build, and it is what lets the pod shrug off mud, road salt and a pressure washer.
Can the lights be customised for bulk orders?
Yes, within what the housing and electronics allow. Logo, packaging, housing finish and specification changes can all be quoted for volume, and because we mold and cast in-house we handle that work as off road led light bar suppliers rather than passing it to a third party. Send the requirement to our sales contact and they will confirm what is feasible and how long production will take.
How involved is the installation?
It is a bolt-on job. The pod arrives with its U-bracket and stainless fasteners, the bracket matches the spacing most 3.5-inch lamps use, and the wiring is two-conductor, so it splices into the relay and switch you would use for any off road led light bar add-on. Nothing on the vehicle body or electronics has to be cut. Allow an evening for a first pair: offer the pod up, mark and drill the bracket holes, run the cable through a grommet, then aim at night against a wall.
When should I use the yellow beam and when the white one?
Yellow is the fog, rain, snow and dust setting — the upgraded PC lens keeps that beam dense so it pushes into the weather instead of reflecting back at you. White is the open-road setting, throwing further for unlit highways and night work where there is nothing to bounce light back. Most drivers run yellow while visibility is poor and switch to white once it clears, so a set of led driving lights aimed this way covers both without a second pair of lamps.
Can I add a pair to a truck that already has auxiliary lights?
Usually, yes. Check two things: whether the existing relay and switch gear has a spare channel, and whether the bracket spacing on the current bar matches a 3.5-inch pod. A truck that already runs a led light bar for trucks setup often has the relay capacity for two more lamps, but confirm the fuse rating before you add them. On a jeep led light bar the pods usually go on the A-pillar or a front bar.
