JOPOWER 4X4 off Road Spot Flood Dual Color White Amber LED Light Bar

Amber/White dual-color LED light bar, IP67 waterproof, adjustable bracket, high brightness for all-weather use, ideal for off-road vehicles, trucks, boats, and industrial applications.
Brand
JOPOWER
Color
Amber & White
Material
Aluminum
Light Source Type
LED
Shade Material
Aluminum
  • JOPOWER 4X4 off Road Spot Flood Dual Color White Amber LED Light Bar
  • JOPOWER 4X4 off Road Spot Flood Dual Color White Amber LED Light Bar
  • JOPOWER 4X4 off Road Spot Flood Dual Color White Amber LED Light Bar
  • JOPOWER 4X4 off Road Spot Flood Dual Color White Amber LED Light Bar
  • JOPOWER 4X4 off Road Spot Flood Dual Color White Amber LED Light Bar

Description

Product Overview

Two light colours in one straight housing. The white LEDs are built as a spot pattern for reach and definition on a clear night; the amber LEDs run as a flood for the conditions that throw a white beam straight back at you — fog, driving rain, blowing snow, dust off a gravel road. Each colour has its own circuit, so the bar can run white only, amber only, or both together. That split is the point of the design. A spot and flood combination in one housing gives you a concentrated centre for distance and a softer wash across the verges, fence lines and the ground around the vehicle. It is what makes this off road led light bar suit vehicles that move between tarmac and rough ground — pickups, 4x4s, UTVs, tractors and yard trucks — rather than a single-purpose show build. The body is a straight aluminium extrusion with a clear lens and stainless steel mounting brackets, made to sit flat on a roof, luggage rack, roll bar or front bumper. The same format works off the vehicle too: boats, forklifts, loaders and site lighting. It is built on our own tooling in Dongguan rather than bought in finished, which is what lets a custom led light bar be built from the housing up rather than relabelled at the end.

Dual-Color Lighting Modes

Three settings, chosen from the switch rather than from under the bonnet: all light, white light only, amber light only. What changes between them is not only brightness but what the beam is good at.

White only is the working mode. In white-only form the bar behaves like a straight white led light bar with a long spot throw — the setting for an open road at night, a long farm track, a docking approach, or yard work where the air is clear and distance is the problem.

Amber only is the bad-weather mode. Fog, driving rain, snow and the dust cloud behind a convoy all send white light straight back at the driver; an amber led light bar is softer on the eye and does not bleach the road the same way. It also puts light on the ground close to the vehicle, which is the part you actually need when you are crawling through weather at low speed.

All light is the maximum the bar can give: spot and flood together, white for definition and amber for contrast. That is the setting for a stationary job — recovery, loading, setting up camp, lighting a yard after dark — rather than for road speed.

Keeping the two circuits apart has a practical side as well. Where local rules restrict white auxiliary lighting on the road, the amber-only setting still leaves a wide, visible light on the vehicle and the white section stays off until you are away from the public carriageway. Check what your own market allows before you sell the bar for road use — it is one question led light bar manufacturers cannot answer for you, because the rule is set locally.

Key Features

  • Two colours, two circuits. White and amber LEDs share the housing but not the switching. Each colour has its own feed, so the switch decides what runs — no changing lamps when the weather turns, and no second amber led light bar bolted on beside this one.

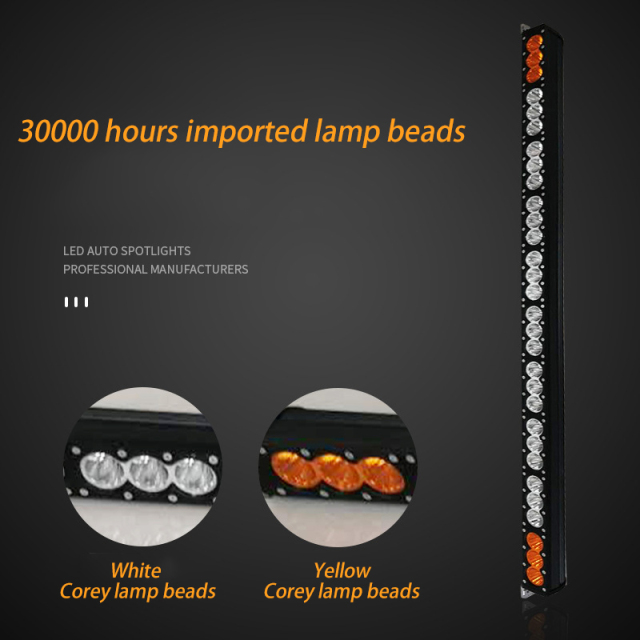

  • White spot, amber flood. The white LEDs are built as a spot optic for distance; the amber row is a wide flood for the shoulders, gate posts and side tracks. Run together, the amber fills the near field while the white led light bar section reaches down the track.
  • The housing is the heatsink. A high-grade aluminium alloy extrusion carries the LEDs and pulls heat off the board. Heat is what shortens a bar's working life — when it cannot escape, output sags and the chips age faster — so there is no plastic shell trapping it, and no fan to clog with dust.
  • IP67 sealing. Dust-tight and protected against water, which covers what a working vehicle actually meets: rain, jet wash, spray off wet roads and a wash-down at the end of a shift. A clear lens sits over the emitters to keep grit and stone chips off them.
  • Built for vibration and corrosion. The rugged housing takes shock and the constant buzz of a machine mount, and the finish resists moisture and road salt — the two things that age an auxiliary light fastest.
  • Stainless steel brackets. The mounting brackets are stainless rather than painted mild steel, so the pivot still moves after a winter of salted roads and the bar keeps the aim you set.
  • Straight body, flat footprint. The straight housing sits flush on a roof, rack, roll bar or bumper with no curved back to shim, which is why buyers fitting a led light bar for truck roof position find it an easy fit, and why it packs and stacks simply for a store holding stock.

Mounting & Aiming

  1. Choose a flat, rigid mounting point — roof, luggage rack, roll bar or bumper. Any of those positions works for this off road led light bar as long as the surface under each bracket is flat rather than a curved plastic trim.
  2. Measure the mounting width. On a led light bar for trucks, that usually means the distance between the roof gutters or across the rack rails; the straight housing should be fully supported, not overhanging a narrow rack.
  3. Bolt the stainless brackets to the bar first, then offer the whole assembly up and mark the holes. On a tube cage or a bumper, clamp rather than drill — that is how most led light bar for atv installations are done.
  4. Set the angle. The bracket adjusts through roughly 45 degrees; aim the bar slightly down so the spot centre lands on the road well ahead rather than into oncoming glass.
  5. Run two feeds back to the switch, one for the white circuit and one for the amber. Keep the connectors above the splash line and seal them; a joint that lets water in is the usual reason a bar works for a season and then stops.
  6. Aim it after dark against a wall or down an empty track, then tighten the pivot bolts. Re-check them after the first long run, once the brackets have settled.

Vehicle & Site Applications

  • Pickups and 4x4s. Over the cab or lower on the bumper and bull bar. This is the classic off road led light bar fitment: amber for dust and fog on gravel and fire trails, white for the run home on unlit tarmac.
  • Trucks and fleet vehicles. Yard work, reversing in the dark, loading bays. A pair on the cab roof is the usual led light bar for trucks arrangement, with the amber section doing marker duty in heavy rain.
  • UTVs and ATVs. Roll-cage mount, where amber cuts through the dust when you are following another machine. It is the led light bar for atv work where grit, not darkness, decides how far ahead you can see.
  • Boats and marine. Bow rail or cabin roof: amber for spray and fog, white for coming into a mooring after dark. Aluminium housing and stainless brackets cope with salt air better than painted steel.
  • Tractors and farm machinery. Night field work, grain carts and implement lighting; the wide amber wash picks up fence posts and headlands that a spot beam skips straight past.
  • Industrial and yard equipment. Forklifts, telehandlers, loaders and workshop aprons — mounted on the machine rather than the vehicle, and switched to amber where white light would glare off a wet yard.
  • Service and recovery vehicles. Scene lighting at a breakdown, where both colours are worth having on at once and the bar has to take being used hard.
  • SUVs, light commercials and motorcycles. Roof rack or crash bar, on builds where a full-width roof bar would be more light than the job needs.

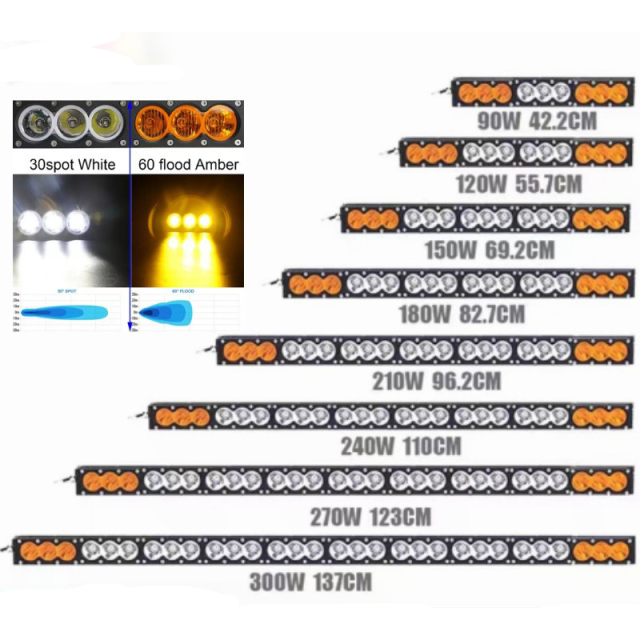

Length & Power Options

WattageOverall bar lengthCommon fitment
90 W42.2 cmATV and small UTV front mounts
120 W55.7 cmUTV cages and compact bumper bars
150 W69.2 cmA-pillar and narrow bumper builds
180 W82.7 cmPickup bumper and grille mounts
210 W96.2 cmFull-width pickup bumpers
240 W110 cmTruck roof racks and tray racks
270 W123 cmWide roof racks, tractors and yard trucks
300 W137 cmCab roofs, loaders and fixed site lighting

Ordering & Delivery

  • Shipping. We work to 7-day fast shipping on this range. Tell your sales contact the destination and the quantity and they will confirm the schedule with you.
  • Configuration. Send the mounting width, the vehicle or machine it is going on, and which colour you want as the default.
  • Voltage. Tell us the system voltage on the vehicle and we will confirm the matching configuration before the order is built.
  • Branding and specification. This is a custom led light bar in the sense that matters to a reseller: technical specification, style, size, colour, logo and packaging can all be set to your artwork.
  • Direct from the people who build it. You are dealing with led light bar manufacturers rather than a trading company, so a specification question is answered by the team that sets the machine.
  • Samples and timing. Ask your sales contact about sample availability and the current production lead time before you commit to a volume.

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

Company about-us page with factory photo and certification logosFactory capability infographic showing production lines, CNC workshops and testing labsService infographic showing LED headlights, light bars and customization optionsCustomization process infographic for ordering LED lighting products

FAQ

Will a straight bar follow the curve of a modern roof?

A curved roof line is the usual reason a bar looks wrong once it is up. A straight housing needs a flat footprint, so on a led light bar for truck roof mounting check the gap between the gutters, or the flat section of the rack, before you choose a length. Put each bracket on the flattest part you have and let the adjustable pivot take up a few degrees of slope. If the roof falls away at the edges, a shorter bar on rack rails sits better than a full-width one, and a roof platform or a pair of cross bars gives you the flat base the bar wants.

Can both colours be run from one switch panel?

Yes, provided the switch has three positions rather than a plain on and off. We build switch panels alongside these bars, so a white led light bar and its amber circuit can share one panel, with the middle position giving both at once. If you are fitting the bar to a vehicle that already has a panel, tell us how many positions are free and we will confirm the wiring before the order is placed.

Is an amber beam allowed on the road where I sell?

Rules on auxiliary lighting colour vary by market and they are written for the road, not for the vehicle. Most regulations treat an amber led light bar as a marker or fog function and a white bar as a driving light with its own restrictions, but the details — permitted colour, mounting height, whether the lamp may be used while moving — are set locally. Check the requirement in the market you are selling into before you position the bar for road use; off-road, yard, marine and agricultural use is normally unrestricted.

How do I clean it after a muddy run?

Hose it down rather than scrub it. The housing is rated IP67, so a normal wash-down with a hose or a low-pressure jet is fine; hold the jet at an angle instead of driving it straight into the seal line, and keep the high-pressure lance away from close range. Mud and dust sitting on the lens cut output long before the LEDs notice, so an led light bar for atv use benefits from a rinse after every wet, gritty run. Check the bracket bolts at the same time — vibration loosens them more often than water gets in.

Which length should I order?

Work from the mounting width rather than the vehicle's overall width. Measure the flat section of the rack, the gap between the gutters or the space between the bull-bar uprights, then pick the length that spans it with both brackets fully supported. On most led light bar for trucks fitments the housing should sit inside the mounting surface rather than hang past it, because an overhanging end is what breaks first on a rough track. Send us the measurement and we will confirm the length and wattage that matches.

Can the bar be built to our own specification and brand?

Yes. Technical specification, style, size, colour, logo and packaging can all be set to your artwork, so a custom led light bar order can go out under your own brand rather than ours. The parts worth fixing early are the length, the colour mix and the switch arrangement, because those decide the housing and the wiring; logo and packaging can follow once those are settled. Send your requirements to your sales contact and they will come back with what is possible.
