JOPOWER Led Light Bar Ultra Slim Off Road Working Light for Trucks

JOPOWER LED light bar delivers bright cool white light, IP67 waterproof, durable aluminum alloy construction, and over 50,000 hours of lifespan, ideal for off-road and outdoor lighting.
Brand
JOPOWER
Material
Aluminum, Polycarbonate (PC)
Color
White
Light Source Type
LED
Voltage
12 Volts (DC)
Vehicle Service Type
Bus, ATV, Van, Car, Truck, Snowmobile, Tractor, Trailer
  • JOPOWER  Led Light Bar Ultra Slim Off Road Working Light for Trucks
  • JOPOWER  Led Light Bar Ultra Slim Off Road Working Light for Trucks
  • JOPOWER  Led Light Bar Ultra Slim Off Road Working Light for Trucks
  • JOPOWER  Led Light Bar Ultra Slim Off Road Working Light for Trucks
  • JOPOWER  Led Light Bar Ultra Slim Off Road Working Light for Trucks
  • JOPOWER  Led Light Bar Ultra Slim Off Road Working Light for Trucks
  • JOPOWER  Led Light Bar Ultra Slim Off Road Working Light for Trucks
  • JOPOWER  Led Light Bar Ultra Slim Off Road Working Light for Trucks

Description

Product Overview

Some vehicles have no room for a full-depth light bar. The JOPOWER ultra-slim off road led light bar was shaped around that constraint: a shallow die-cast aluminium housing that sits on a roof rack, behind a grille, above a rear door or along a bumper without fouling bodywork, hinges or antenna bases.

Cool white LEDs sit behind a polycarbonate lens, and fins run along the back of the casting so heat leaves the bar instead of building up over a long night shift. The beam reaches a long way down the road while still showing the verge and the edge of a track — the reason this bar turns up on night trunk routes, on forestry and mining sites, on recovery trucks, and on the led light bar for atv builds that spend their weekends in mud.

We supply it direct from our own plant in Dongguan to auto parts stores, repair shops and resellers. If you are choosing a low profile led light bar to stock for customers who work their vehicles hard, this is the one to start with.

Key Features

  • Shallow mounting profile — the slim housing clears grille slats, roof-rack crossbars and rear-door frames where a deeper body would need spacer blocks.
  • Cool white LED output — long reach combined with a wide view of the verge, which matters more on an unlit service road than a raw brightness figure.
  • Sealed against dust and water — the lens and housing are closed against grit, spray and washdown water, so rain, snow, sand and river crossings are part of the job rather than the end of it.

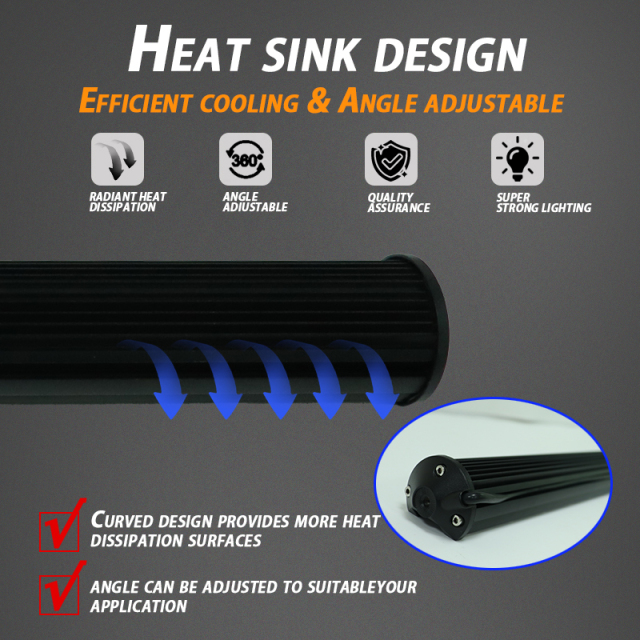

  • Die-cast aluminium heat sink — fins along the back pull heat out of the LED board so output stays steady through a full shift instead of fading as the bar warms.
  • Polycarbonate lens — takes stone chips, branches and workshop knocks without crazing.
  • Adjustable end brackets — loosen, tilt, tighten; the beam can be aimed at the road, the load bay or the work area without re-drilling.
  • 12v led light bar wiring — a fused feed and a switch are all the electrics it needs.
  • Built, assembled and tested in-house — we are led light bar manufacturers with our own casting, assembly and test lines, so a repeat order matches the batch you approved and a custom led light bar run is tested on the same line.
  • Mounting points on a boat — the cabin roof, radar arch, transom and bow rail are the usual spots; the shallow housing clears bimini frames and antenna bases where a deeper bar would foul.
  • 12 V DC compatibility — most boat electrical systems run 12 V DC, so the bar wires in the same way as on a truck; use a fused feed and marine-grade connectors to keep corrosion out of the circuit.
  • Spray and washdown, not submersion — the IP67 rating covers rain, spray and deck washdown, but it is not a marine-specific certification and the bar is not designed to be submerged; it is auxiliary work lighting, not a replacement for navigation lights.
  • Salt-air materials — the die-cast aluminium housing and polycarbonate lens were chosen to resist corrosion and impact, but the bracket bolts and connector pins are the parts to watch in coastal service.
  • Coastal work scenarios — slipway lighting, dockside vehicles, workboat decks and tenders; the bar lights the working area or the water edge without dazzling the helm.
  • Aim it low and wide — on a boat, tilt the beam down onto the deck or the water immediately ahead; pointing it straight out to sea wastes light and can interfere with night vision.

Slim Housing & Thermal Design

Clearance is decided by the housing, but it is lost or won at the brackets. The end brackets sit level with the housing rather than hanging below it, so the assembly can be pulled tight against a surface with the bolts reached from the side. On a roof rack or a rear door that means less wind noise at speed and less to catch on a branch or a loading-bay frame. This is a low profile led light bar in the literal sense — depth has been kept down, not just width — so a led light bar for trucks can sit at grille height without shielding the intercooler or the number plate.

The body is die-cast aluminium rather than a folded steel shell, and that choice carries two consequences. There is no seam or paint edge to flake after a winter of road salt, and the LED board mounts directly to the casting, so heat travels out of the diodes and into the fins instead of sitting behind the lens. Warm LEDs lose output first and life second; keeping the casting cool is what keeps the beam looking the same at hour ten as it did at hour one.

The same shallow shape suits an ATV cage, where the only flat surface is often a short length of tube and a deeper housing would need a spacer. Whatever the vehicle, check the surface is structural before you drill — a plastic cover will flex and eventually crack a lens.

Applications

  • Night trunk routes and depot work — a bar on the cab roof or rear door lights the load bay, the catwalk and the ground around the trailer while the yard lights stop at the gate.
  • Forestry and mining logistics — mounted low on the front bumper or above the screen, it picks out track edges and stockpile boundaries under a tree line or on a haul road.
  • Emergency and recovery vehicles — rear or side scene lighting aimed wide so the crew can work around the vehicle without a hand torch.
  • ATV, UTV and 4x4 builds — a led light bar for atv fitting on the front rack or cage rail, angled for climbs so the beam stays on the trail instead of the sky.
  • Agriculture and yard equipment — tractors, telehandlers, forklifts and trailers built long before LED lighting existed; the low current draw suits older electrical systems.
  • Low-clearance positions — above a rear door, under a roof-rack bar or behind a grille, where a low profile led light bar fits and a deep one would foul the bodywork.

Specifications

BrandJOPOWER
Product typeUltra-slim LED work light bar
Light sourceLED, cool white
HousingDie-cast aluminium alloy with finned heat sink
LensPolycarbonate (PC)
FinishBlack
Voltage12 V DC
Water and dust protectionIP67
LED service life50,000 hours
MountingEnd brackets, adjustable angle
Typical vehiclesTruck, trailer, van, bus, car, ATV, snowmobile, tractor
Typical useOff-road driving, work and utility lighting

Installation & Wiring

  1. Choose the position and check clearance. On a led light bar for trucks, the roof rack, grille and rear-door frame are the usual spots; leave room behind the bar for the cable exit and enough thread for the bracket bolts.
  2. Bolt the end brackets to the bar first, then offer the assembly to the vehicle and mark the holes. Working in that order keeps the bar square to the mounting surface.
  3. Fix the brackets to something structural. A rubber or nylon pad between bracket and paint protects the finish, and remember that a plastic bumper cover will flex and crack a lens long before the bracket gives way.
  4. Run a fused 12v led light bar feed from the battery to a switch in the cab, kept clear of exhaust, fan blades and suspension travel, and use a relay so the switch carries control current only.
  5. Aim it: loosen the end brackets, tilt until the beam lands where you need it — road ahead, load bay or work area — then tighten both sides evenly.
  6. Test before the vehicle leaves the bay: every LED lit, no flicker when the engine starts, switch working, and the cable tied away from hot or moving parts.

Care & Maintenance

Maintenance on a sealed bar is mostly about not undoing the sealing. Rinse mud and road film off the fins before it sets — a heat sink packed with dried clay cannot shed heat — and clean the lens with mild soap, water and a soft brush. Solvents, abrasive pads and cutting compound will haze polycarbonate, and a pressure lance held close to the lens edge or the cable exit can push water past a seal that is otherwise sound, so stand back and use a fan pattern.

After the first week on a vehicle, and again after a long stretch of rough-road work, check that the bracket bolts are still tight and that the cable has not chafed against a body edge. Look at the connector for green corrosion if the vehicle works around salt or fertiliser; a smear of dielectric grease on the pins is a cost-effective corrosion safeguard. Spare units kept on the shelf should stay dry and boxed so the lens does not collect workshop grit before it is fitted.

Beyond that the bar asks for very little. There are no moving parts inside and the heat path is the casting itself, so as long as the fins stay clear and the mounting stays firm, output stays where it was on the first day.

Ordering & Delivery

  • Fast dispatch — in-stock items move on 7-day fast shipping; ask your sales contact to confirm current timing against your quantity and destination before you promise a date to your own customer.
  • Fitment check — confirm the mounting depth, which side the cable exits and the beam aim you need before the order is confirmed; a quick measurement against the vehicle saves a return.
  • Mixed and repeat orders — combine this bar with work lights, driving lights and switch panels on one shipment, and set a repeat schedule if the line sells steadily.
  • Custom requests — a custom led light bar order can carry your branding, packing or specification changes; feasibility and any tooling requirement are confirmed before production starts.
  • Samples — ask your sales contact about sample availability before committing to a bulk order.
  • Certification documents — CE, RoHS and US DOT certification applies across our range; tell us which market you sell into and we will confirm the paperwork you need. What a reseller buys with this bar is a shorter installation and a quieter after-sales file. One unit covers pickup roof racks, trailer headboards and ATV cages without a second bracket kit, so a single line on the shelf answers several customer requests. There is also less to go wrong on the vehicle: no paint edge to flake, no separate heat-sink plate to rattle loose, and a lens that shrugs off the stone chips that come with gravel roads. For a garage fitting these for customers, the value sits in bay time. Standard wiring, brackets that adjust without re-drilling and a bar light enough to hold in place with one hand all shorten the job, and every hour not spent refitting is margin kept. Across a mixed fleet of off road led light bar fitments, the same unit and the same procedure cover trucks, trailers and utility vehicles, which also makes training new staff on it simple. We build these in our own plant and sell direct, which is why a custom led light bar request gets a straight answer rather than a forwarded email. If your customers need a different look, a branded box or a specification adjustment, tell us what they are asking for and we will confirm what is practical on your quantity before anything goes into production.

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

About-us page showing Dongguan Spotlight Lighting factory and certificationsFactory capability infographic with production lines, CNC workshop and lab testingService infographic showing OEM customization options for LED lighting productsCustomization process infographic listing ordering and after-sales service steps

FAQ

What materials are used in the construction?

The housing is die-cast aluminium alloy and the lens is polycarbonate. Aluminium was chosen because it doubles as the heat sink — the LED board mounts directly to the casting — and because it stands up to road salt and wet weather without rusting through. Polycarbonate takes stone chips and branch strikes without crazing the way acrylic does. As led light bar manufacturers we cast, assemble and test these parts in our own plant, so the material specification does not drift between batches.

Can the light bar be customised for different vehicle types or specifications?

To a point, yes. The standard bar suits the usual 12 V DC circuits on trucks, SUVs, ATVs and utility vehicles, and a custom led light bar build can change specification, style, size, colour and logo for customers selling under their own brand. Send us the vehicle, the mounting points and the electrical setup and we will confirm what is practical for your order. Being the factory rather than a middleman also means we can tell you when a request would add cost without adding value.

How is the light bar installed on trucks or ATVs?

Mounting method is the same on both: bolt the end brackets to a structural surface, run a fused 12v led light bar feed to a switch, then tilt the bar until the beam hits the working area. On a pickup or heavy truck the usual positions are the roof rack, grille and rear-door frame, and because a led light bar for trucks carries more wiring behind the cab we suggest an auto electrician for the electrical side. On a quad the front rack or cage rail takes the brackets, and a led light bar for atv fitting is a bolt-on job for anyone with hand tools.

What maintenance is required to keep it working?

Very little, and that is deliberate. There are no moving parts and no serviceable internals; the die-cast housing handles the heat that shortens the life of cheaper bars, which is why the unit holds its rated output for a long service life. In practice the routine is a rinse, a wipe of the lens and a look at the fixings after heavy vibration — most problems in the field trace back to how the bar was mounted, not to the LEDs themselves.

What does the IP67 rating actually cover?

The 6 means the housing is dust-tight, and the 7 means it survives temporary immersion in water under test conditions. In everyday terms that covers rain, spray, washdown, river crossings and the dust that comes off a gravel road. It is not a licence to leave the bar submerged, and the seal only holds while the lens and the cable exit are undamaged.

Is the light bar suitable for boats and coastal work?

The housing and lens are the parts that matter in salt air, and both were chosen with that in mind: die-cast aluminium that resists corrosion and a lens that will not craze. The same off road led light bar we supply for trucks and ATVs is used on decks, slipways and dockside vehicles, where the sealed body keeps spray out of the LED chamber. Rinse it with fresh water after regular saltwater exposure, and keep an eye on the fixings — salt works on steel faster than it works on the housing.
