JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck

The JOPOWER 5 Inch Spot Beam Work Lamp is a durable, high-performance light designed for off-road trucks, offering focused illumination for enhanced visibility in tough conditions.
Brand
JOPOWER
Power
80W
Material
Aluminum die-cast housing
Lifetime
50000H
Color temperature
6000k
Waterproof rate
IP67
Working Temperature
-40-120℃
Color
Yellow
Certificate
DOT, E-mark, ROHS, CE
Usage
SUV UTV ATV offroad, truck, motorcycle. etc
  • JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck
  • JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck
  • JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck
  • JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck
  • JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck
  • JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck
  • JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck
  • JOPOWER 5 Inch Spot Beam Work Lamp For Off-Road Truck

Description

Product Overview

Built for trucks that spend more time on gravel than on asphalt, the 5-inch spot work lamp is the compact auxiliary light in the JOPOWER range that fits where a full bar will not. Each unit is sold as a single pod with an adjustable bracket, so it suits a bumper corner that needs one more light, a pair on a bull bar, or four across a headache rack. Because the bracket pivots at the side, the lamp can be aimed after the mount is bolted down instead of shimming the bracket to get the beam level. What it replaces is worth saying plainly: tired halogen work lamps, plastic-bodied auxiliary lights that fog up after a season, and generic cubes whose beam is too wide to be useful past the hood. The spot reflector throws a defined patch of light a long way down the track, and changing the front cover to flood or combo turns the same lamp into close-range illumination for loading and repairs. Most of the led offroad lights we ship go to people who fit them for a living — upfit shops, fleet workshops, parts counters and off road led light bar suppliers who need one lamp to cover several vehicle types. If that is how you buy, the specification table gives you the numbers to quote against, and the sections that follow cover beam choice, mounting, night use and what to confirm before the order goes in.

Banner showing LED off-road light pods, roof light bar, certifications, factory equipment.

Performance & Build Advantages

The point of that concentration is reach: a tightly controlled spot puts usable light on the track ahead instead of spilling brightness across the first few metres. Colour temperature sits at 6000 K, a clean white that keeps contrast high on gravel, rock and painted markings without the blue cast that tires the eyes over a long shift. Current control is the part buyers rarely ask about and then notice later. The driver circuit holds brightness steady as system voltage moves — when a winch loads the battery, when a second pair of lamps is switched on, or when the alternator is only just keeping up at idle — and it keeps electrical noise low enough not to disturb radios, GPS units or the vehicle's own modules. On a fleet truck carrying comms equipment, that is the difference between a usable radio and a hiss. Heat is managed through the die-cast body and the finned rear rather than a fan, so there are no moving parts to seize in dust. These led offroad lights are rated to run from deep winter cold through to the heat of an engine bay or a desert afternoon, and the rated life is long enough that replacement becomes a fleet-planning question rather than a monthly one. For a buyer putting led driving lights on several vehicles, the practical result is a lamp that behaves the same on the tenth unit as on the first: same beam shape, same colour, same current draw. The lamp suits fleets running off-road trucks, SUVs, UTVs and ATVs through heavy-duty fieldwork and expeditionary logistics, where night operations, maintenance work and adverse-weather navigation all depend on dependable auxiliary light. Its modular design drops into existing lighting systems, keeping retrofit and upgrade work straightforward, and the situational awareness it adds supports both regulatory compliance and worker safety. The housing is die-cast aluminium rather than stamped steel or moulded plastic, which matters twice on a working truck: it survives knocks against rock and loading equipment, and it conducts heat away from the LED board instead of letting it build up behind the lens. The black ribbed shell and finned rear section give that heat somewhere to go, so output stays level through a long shift instead of fading after the first hour. The lens sits in a sealed front frame rated IP67, which covers dust ingress and short immersion. It is not a claim of continuous underwater running, and we would not mount any lamp below the wading line on purpose. The bracket bolts to the side of the body on a pivot stud, so the lamp can be tilted and locked after the bracket is fixed to the vehicle. That saves drilling a second set of holes when a bumper or roll bar is not quite square. The power cable leaves the rear of the housing already sealed, which removes the field joint where water usually finds its way in. At roughly the size of a hand, the pod fits bumper corners, A-pillars, roof racks and headache racks where a bar is too long. As led light bar manufacturers, we seal and wire this lamp on the same lines and to the same practice as our bar range, so a mixed order arrives to one standard. The front light shield is also where branding lives: it can be produced with your logo when the order is placed as a custom off road lights run, which is how most distributors and accessory resellers order it.

Installation & Fitment

  1. Choose the mounting point — bumper, bull bar, A-pillar, roof rack or headache rack — and check there is clear depth behind it for the bracket, the cable and your fingers; the same clearance applies across offroad lights for truck, SUV and UTV builds.
  2. Bolt the bracket to a flat surface with the fixing hardware, leaving the side pivot stud finger-tight so the lamp can still move.
  3. Route the cable away from the exhaust manifold, sharp panel edges and anything that moves with the suspension, and fit a grommet wherever it passes through metal. Leave a drip loop below the housing.
  4. Wire the lamp through a relay and a dash switch on a switched feed. Most truck driving lights are wired this way so the lamp cannot be left burning with the ignition off; tell us if the vehicle runs 24 V so the supply matches.
  5. Aim the spot on a dark, flat surface a few metres ahead, set the beam to finish where the low beam stops being useful, then lock the pivot stud.
  6. Power up with the radio and any comms equipment running, and check that nothing on the vehicle picks up noise from the lamp.
  7. Fit the cover you plan to run, then check the beam once more in the conditions you actually drive in — a lamp aimed on dry tarmac often needs a small drop for fog.

Night Operations

On an unlit haul road there is no ambient light to fall back on: the edge of the formed surface, the drainage ditch and the parked machine at the next bend all have to be lit or they do not exist. That is the job the spot beam was built for. Mounted at bumper, bull bar or A-pillar height — the usual positions for offroad lights for truck, SUV and UTV use — it puts a defined patch of white light well down the track, giving the driver time to read the surface and slow down before it arrives.

Trail work asks something different. On a mountain or desert route at night the problem is not brightness but orientation — knowing where the track goes when there is no fence, no verge and no other traffic to follow. A pair of these 4x4 off-road lights angled slightly outward widens the usable field without washing out the near ground, and the sharp edge of the spot keeps the far section readable.

Convoys add dust. Following another vehicle at night means driving into a cloud lit from behind, which is where the yellow and amber covers earn their place: the longer wavelength cuts through suspended dust and snow with far less glare thrown back at the driver. The same covers are what most truck driving lights users reach for in fog, where white light simply reflects off the water droplets.

When the truck stops, the job changes again. Swap to the flood cover — or run a second lamp with one fitted — and the same fixture lights the trailer, the load straps and the ground around the wheels. Recovery work at night, winching, changing a wheel on a soft shoulder: all of it happens inside that pool of light rather than in the beam.

What it comes down to is that led driving lights on a working vehicle are not a styling item. They decide how early a driver sees a hazard, how confidently a convoy holds its spacing, and whether a job can carry on after sunset.

Field Maintenance Lighting

  • Park and aim — because the bracket pivots, the truck can be positioned once and the lamp tilted onto the work area instead of moving the vehicle again; useful when the job is under the hood, behind the cab or at the rear of a trailer.
  • Trailer decks and load checks — with a flood cover fitted, the lamp lights the deck, the straps and the ground where the driver is stepping, which is exactly where most slips happen on a night stop.
  • Tyre and running-gear work — a shoulder repair on a dark road needs light on the ground, not down the road; the wide cover puts it there while the vehicle's own lights stay on the traffic side.
  • Pre-dawn starts — hooking up an implement, checking hitch height or loading a bed before sunrise is quicker with one lamp aimed at the hitch than with a hand torch held in the teeth.
  • Yard inspections — a walk-around at the start of a shift is easier when the vehicle carries its own work light; the same 4x4 off-road lights that light the trail also light the inspection point.
  • Temporary site lighting — on a construction or oilfield pad, a parked truck with two of these lamps aimed at the task gives a crew light for as long as the engine is running, without dragging a generator out.
  • Keeping them in service — rinse mud and salt off the lens and the rear fins, check the bracket bolts after rough ground, and look over the cable where it enters the housing; five minutes at service time prevents most of the failures that take led offroad lights off a vehicle and gives off road led light bar suppliers a simple routine to pass on to fleet buyers.

Fleet & Worksite Benefits

  • One lamp across the fleet — as led light bar manufacturers, we build the same pod to suit pickups, SUVs, UTVs and ATVs, so a workshop stocks one box instead of four and still kits out every vehicle on site.
  • Retrofit, not rebuild — the bracket works with existing mounting points and the lamp sits alongside factory lighting, so an upgrade does not mean re-wiring the vehicle or changing the bumper.
  • Night-shift visibility — crews working after dark see the ground, the load and each other sooner. On a haul road or in a yard that is a direct reduction in near-misses, not a comfort feature.
  • Predictable uptime — no fan to seize, a sealed body that keeps dust and spray outside, and a rated life measured in tens of thousands of hours, so lamps stop being a recurring line on the maintenance sheet.
  • Something for the counter to sell — branded light shields and a choice of covers let a parts store offer a configured kit instead of a plain box. Output stays high while electrical draw and heat remain controlled, so the lamp holds its performance through extended use. Installation follows standard automotive electrical practice, which shortens deployment and simplifies maintenance, and the weather-resistant build with spot, flood and combo patterns covers a range of operating conditions.

Specifications

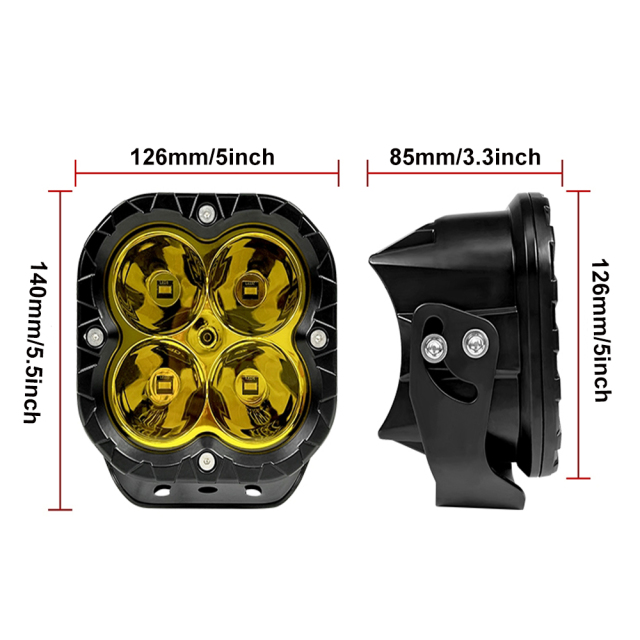

Lamp type5-inch square auxiliary work lamp
Beam optionsSpot, flood, combo (set by the front cover)
Cover coloursBlack, white, yellow, amber
Power80 W
LED chips3570
Colour temperature6000 K
HousingDie-cast aluminium, black ribbed finish
Waterproof ratingIP67
Working temperature-40 °C to 120 °C
Rated life50,000 hours
Electrical behaviourStable current control, no electromagnetic interference
MountingAdjustable bracket with side pivot stud
Vehicle typesOff-road truck, Jeep, SUV, ATV, UTV, heavy-duty, car, boat

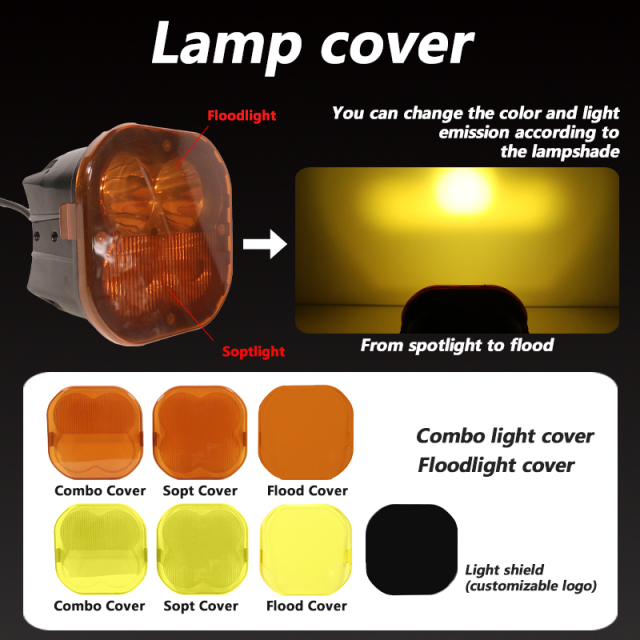

Beam Types & Covers

  • Spot cover — a tight, long-throw beam for track work and open-road running; it picks up marker posts, culverts and the edge of the formed surface well before the headlights reach them.
  • Flood cover — a wide, short spread for the ground around the vehicle: hitching a trailer, checking tyres, working under the hood at night.
  • Combo cover — spot in the middle, flood at the edges; the sensible single-lamp choice when a vehicle does both trail and yard work.
  • White cover — neutral 6000 K output for dry nights and clear air, where maximum contrast on gravel and tarmac matters.
  • Yellow and amber covers — longer-wavelength light that cuts through fog, dust and falling snow with less glare thrown back at the driver; the cover most 4x4 off-road lights owners fit for winter and desert running.
  • Black cover — completes the set where a dark front end is wanted instead of a bright lens.
  • Spares make sense — a second cover costs little and turns one set of truck driving lights into two different beam patterns on the same bracket.

Ordering & Delivery

  • Shipping — our 7-day fast shipping covers in-stock items; confirm availability against your quantity with your sales contact before you promise a date to your own customer.
  • Custom work — the light shield can carry your logo and covers can be mixed across a single order. Send artwork and the cover breakdown, and confirm the pack format you want before production starts, since a custom off road lights order runs on its own schedule.
  • Mixed orders — as led light bar manufacturers we ship bars, pods, work lamps, whip lights and switch panels from the same plant, so a lighting order can leave on one truck instead of three.
  • What to send for a quotation — vehicle types, quantity per beam type, cover colours, branding and any packing requirement. With those in hand we can quote the whole kit rather than the lamp alone.
  • Terms — lead time, quantity breaks and payment terms are confirmed per order with your sales contact; they differ between stock items and custom runs, so ask before you plan.
  • Ordering alongside your bar range — buyers who already work with off road led light bar suppliers for their bars can add this lamp to the same purchase, keeping one shipping schedule and one set of paperwork.
  • Next step — send your vehicle list, beam mix and branding requirements and we will come back with a quotation.

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

Company about-us page with factory building, delivery truck, and certifications.Factory capability infographic showing building, production lines, CNC workshops, testing lab.Banner advertising OEM lighting service, free design, and ready stock.Service infographic showing OEM, ODM, custom packing, logo, color, parts.Infographic showing six-step customization process for ordering products.

FAQ

What materials are used in the construction of this work lamp?

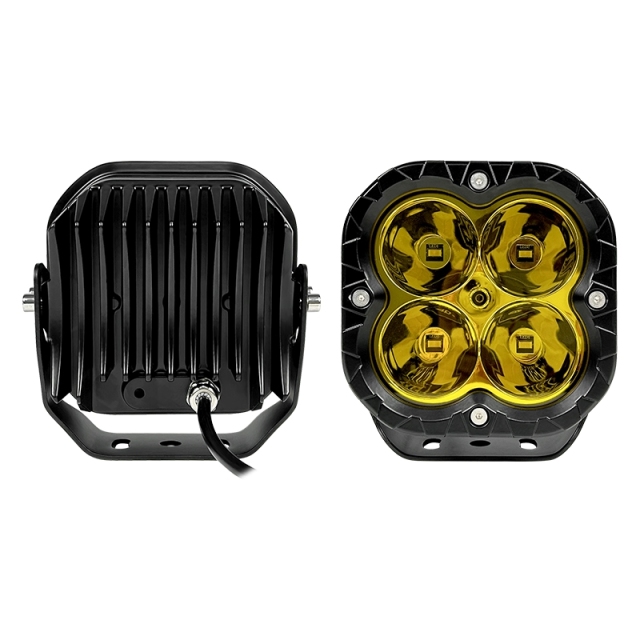

The housing is die-cast aluminium with a black ribbed finish and a finned rear section that acts as the heat sink. The 3570 LED chips sit behind a sealed front lens, and the whole assembly is rated IP67, so dust ingress and short immersion are covered. The mounting bracket is metal and bolts to the side of the body on a pivot stud.

Can I customize the light colour or the beam type?

Yes. The front cover sets both: white for clear nights, yellow or amber for fog, dust and snow, and spot, flood or combo for reach, spread or a mix of the two. Covers are chosen with the lamp, so a mixed set is easy to build, and the light shield can be branded as part of a custom off road lights order.

How do I know it will fit my vehicle?

The lamp is made for auxiliary mounting on off-road trucks, Jeeps, SUVs, UTVs, ATVs, heavy-duty equipment and boats, and the adjustable bracket with a side pivot covers most flat mounting points. Before ordering, check the clearance behind the mounting spot for the bracket and the cable, and tell us if you run a 24 V fleet so the wiring matches. The same pod is used across offroad lights for truck, SUV and UTV builds.

What quality certifications does JOPOWER hold for these led driving lights?

The lamp is listed against DOT, E-Mark, RoHS and CE — the four references fleet buyers and distributors usually ask about. Ask your sales contact for the current documents to go with your order if you need them for a tender file or a customs check.

What comes with each lamp, and what does my installer need to supply?

Each lamp arrives with its mounting bracket, fixing hardware and a power cable already sealed into the housing; the covers are chosen with the order. Your installer supplies the dash switch, the relay and the cable run to the vehicle's circuit, and most installs add a fuse at the battery end.

How should I clean and look after the lamp?

Rinse mud, salt and dust off the lens and the rear fins with water — keep solvents off the lens and do not hold a pressure jet close to the seal. Check the bracket bolts after rough ground and inspect the cable where it enters the housing. If you swap covers often, wipe the lens before refitting so grit does not sit between cover and lens.
