Description

Product Overview

The JOPOWER 3-inch LED fog and driving lamp is a compact auxiliary light for 4WDs, Jeeps, pickups and utility vehicles that want a clean white beam without a heavy power draw. It is the sensible choice when a halogen fog lamp has gone cloudy, when a build needs a matching pair of small auxiliary lights, or when a store wants an affordable LED option on the shelf beside larger pods. Fitting is a bracket job rather than a bulb swap: a fused feed, two connections and the lamp is live. Buyers who order this alongside bars or pods get one finish and one sealing standard, which keeps a shelf of offroad lights for truck use looking like one range rather than a mix of suppliers.

Beam Pattern & Light Output

  • Spot, not flood. The beam is a tight spot with a defined hot centre, so light carries down the road instead of spreading across the bonnet. On a dark trail or an unlit yard you see the edge of the surface ahead and anything sitting on it. Most led driving lights for trucks are bought at this size for exactly that job — filling the gap the headlights leave.
  • Instant full output. There is no warm-up as with a halogen filament, so the lamp is at full brightness the moment it is switched on, which suits short bursts of light while manoeuvring.
  • When a spot is the wrong choice. In thick, wet fog a tight white spot bounces light back at the driver, and 4x4 off-road lights with a yellow lens or a wider flood pattern do that job better. If most of your driving is in dense fog, say so and we will point you at the right model in the range.

Housing, Lens & Sealing

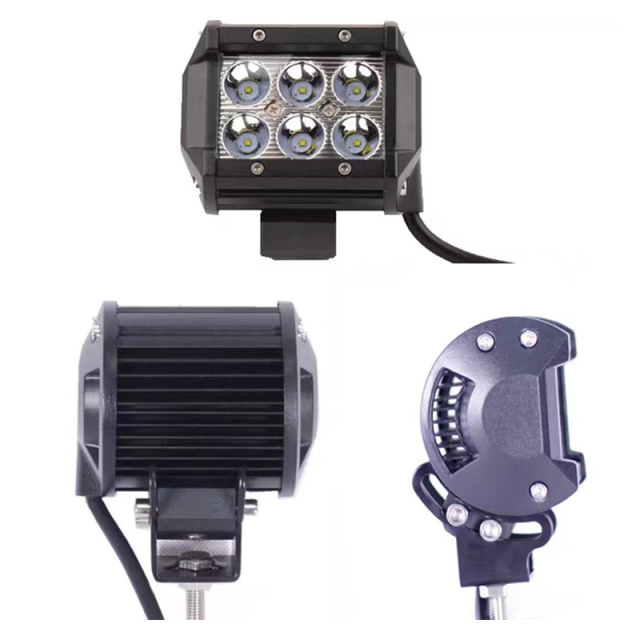

Diecast aluminium body. The housing is cast rather than folded steel, so the mounting points keep their shape and the LED board sits on a solid heat path. The back of the body is finned, giving the heat somewhere to go on a lamp that may stay on for hours on a site or in a field. PMMA lens. The lens stays clear and does not yellow as quickly as lower-grade plastics under sunlight, so the beam keeps its white colour over a long service life. It also takes the knocks that come with gravel tracks and branch strikes. Sealed against dust and water. The housing is dust-tight and protected against short immersion, which covers a ford, a bow wave over the bumper or a washdown with a hose. The lens ring compresses the gasket, so keep a pressure washer off that joint and check the seal after the lamp has been under water. Stainless steel bracket. The mounting bracket and its hardware are stainless, and that is the part that rusts first on a low-specification lamp. It is a small detail that decides whether the light comes off cleanly two seasons later or shears at the bolt. Why the seal matters more than the numbers. Output is easy to print on a box; a gasket that survives two winters is not. When you compare led light bar manufacturers or suppliers of custom off road lights, ask what happens to the lens ring after a season of mud and sun. It is the difference between a lamp that is replaced under complaint and one that is simply reordered.

Fitment & Voltage

CheckDetail
Vehicle system12 V and 24 V DC
Operating range10–30 V DC

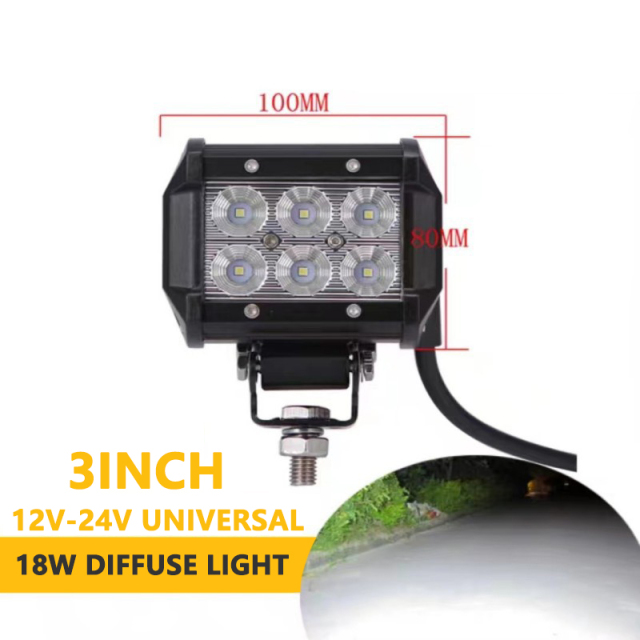

Body diameter3 inch
Mounting bracketStainless steel, adjustable angle
Mounting surfaceFlat area on a bumper, bull bar, A-pillar bracket or rack
ClearanceSpace behind the lamp for the housing and cable
WiringFused auxiliary circuit or switch panel
Not designed forReplacing a socket-style bulb inside a headlight housing
Typical fitmentsJeep, 4WD, pickup, UTV, tractor, trailer

Installation & Aiming

  1. Pick the position. Bumper, bull bar, A-pillar bracket or roof rack — choose a flat, solid surface with clear space behind the lamp, and check local rules on how high and how far apart custom off road lights may be mounted.
  2. Test-fit before you drill. Hold the stainless bracket against the surface, check the lamp clears trim, wiring and the number plate, then mark the holes.
  3. Run the feed. Take power from a fused 10–30 V circuit or a switch panel. Plan the cable route away from heat, sharp edges and moving parts, and leave a small service loop at the lamp.
  4. Mount and aim. Fix the bracket with the supplied hardware, leave the adjustment slightly loose, then set the beam against a wall or on an unlit stretch at night.
  5. Set the cut-off low. Aim the hot spot so it sits below the horizon at normal driving distance. A spot beam set too high is the most common mistake on offroad lights for truck installations: it blinds oncoming traffic and lights nothing useful.
  6. Road test and re-check. Drive a short loop, check that nothing has worked loose, then inspect the lens and gasket after the first wet or dusty run and re-torque if needed.

Applications

  • Jeep and 4WD front auxiliary. A pair on the bumper or a bar mount fills the gap between dipped headlights and the trail — the classic use for off road lights on a modified Jeep or pickup.
  • Pickups and work trucks. One lamp on the rear rack or headache bar lights the load bed, the trailer or the hitch area without leaving the cab.
  • Overland and expedition builds. Low current draw matters when the lamp runs from a second battery or a solar set-up at camp.
  • Farm and utility machines. Tractors, UTVs and yard equipment often already have a 12 V or 24 V auxiliary circuit and a flat bracket point.
  • Trailers and site equipment. A trailer nose for hitching in the dark, a loader arm, a small excavator — anywhere there is a flat surface and a switched feed.
  • Recovery and camp lighting. These 4x4 off-road lights are usually set low to light the ground around the vehicle during a recovery, a tyre change or setting up camp, where a wide, even pool of light matters more than long reach.

Specifications

SpecificationValue
Power18 W (six 3 W high-intensity LEDs)
Theoretical output1,400 LM
Operating voltage10–30 V DC
Beam patternSpot beam
Colour temperature6000 K pure white
Waterproof ratingIP67
HousingDiecast aluminium
LensPMMA
Mounting bracketStainless steel
Body diameter3 inch
CertificationCE

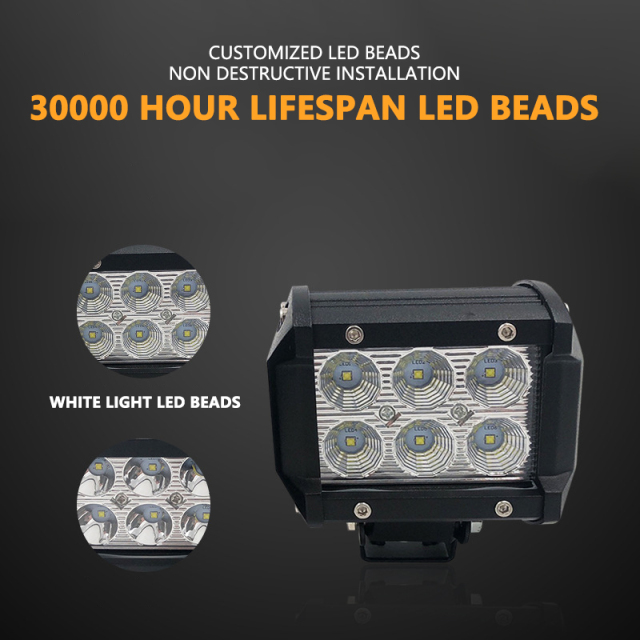

Rated LED lifeApproximately 30,000 hours
FitmentUniversal 12 V / 24 V vehicles; Jeep, 4WD, truck, UTV

Ordering & Delivery

  1. Tell us what you need. Quantity, whether the vehicles run 12 V or 24 V, where the lamp will be mounted, and whether the order is for your own brand or for stock. For fleet orders, say how many led driving lights for trucks you need on the 24 V vehicles and how many go on the 12 V pickups.
  2. One range, one standard. Consolidating with one of the led light bar manufacturers that also builds the small lamps and brackets keeps finish and hardware consistent across a shelf, and leaves you one contact for a mixed order.
  3. Confirm the specification. We come back on finish, what is included in the carton and the carton quantities, and flag anything that changes the price at the volume you are ordering.
  4. Agree the terms. Payment terms, the exact lead time, warranty and after-sales arrangements are set at quotation stage, because they change with order size and destination.
  5. Custom work. Specification, style, size, colour, logo and packaging can all be tailored. Tell us what your listing needs and we will say what is realistic for this housing.
  6. Shipping. Stock items leave on a 7-day fast shipping schedule, and this lamp can travel in a mixed order with fog lamps, work lights, bars and other led driving lights, so a distributor can restock a whole shelf in one shipment.
  7. Before a large first order. If you want to check the finish and the beam first, ask your sales contact about sample availability.
  8. Get in touch. Send the details through the enquiry form and the team will come back with pricing and availability.

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

Factory banner with LED light pods, certificates, and production scenesInfographic of factory building, production lines, CNC workshops, and testing labsService infographic showing LED light customization, packaging, logos, colors, and partsSix-step customization process infographic for ordering custom products

FAQ

Is this a plug-in bulb or a complete lamp?

It is a complete lamp with a stainless steel mounting bracket, not a socket-style bulb that drops into a headlight housing. You bolt it to a flat surface — bumper, bull bar, A-pillar bracket or rack — and wire it to a switched 10–30 V DC feed. That bracket format is what most off road lights are sold in, and it is what lets you aim the beam where you actually need it.

How far does the spot beam actually reach?

Far enough to read the road edge and pick out obstacles well ahead at trail, yard and site speeds, but this is an 18 W, 1,400 LM lamp and we would rather be straight about that than quote a figure it cannot hold at highway speed. A tight spot carries further than a flood of the same output, which is why led driving lights at this size are chosen for reach rather than width. For fast open-ground driving, step up to a 50 W pod.

Will one lamp cover both 12 V and 24 V vehicles?

Yes. The operating range is 10–30 V DC, so it runs on a 12 V car and a 24 V truck without a converter. That range is why the same lamp is ordered as led driving lights for trucks on a mixed fleet and as a small auxiliary light on 12 V pickups. If any of your vehicles sit outside that window, tell us before ordering.

Can it survive river crossings, mud and pressure washing?

The housing is dust-tight and sealed against short immersion, so a ford, a bow wave or a muddy track is within what it is built for. Keep a pressure washer off the lens ring, because the jet lifts gaskets that standing water will not, and inspect the seal after a deep crossing. On 4x4 off-road lights the gasket usually ages before the LEDs do, so it is worth a look each season.

Can the lamp be supplied with our own branding or a different colour temperature?

As standard this model ships in 6000K pure white. Beyond that, our factory does take on custom work: specification, style, size, colour, logo and packaging can all be tailored, which is usually the first thing buyers asking about custom off road lights want to know. Tell us what your listing needs and we will confirm what is possible for this housing.

Will the bracket fit my bull bar or A-pillar mount?

The bracket is stainless steel and adjustable, but the deciding measurement is the flat area you have available, not the bracket itself. Offer the lamp up before drilling and check both the footprint on the bar and the clearance behind it for the housing and cable. That check rules out more offroad lights for truck builds than anything else; a 3-inch lamp needs a smaller pad than a pod, which is often why it gets chosen for tight A-pillar and rack positions.

How does this compare with your 3.5-inch 50 W pods?

The 3.5-inch 50 W pods are the brighter option, with more coverage and a higher price; this 18 W lamp is smaller, easier on the wiring and simpler to fit where space is tight. Both come out of the same workshop and follow the same sealing and finish standards. That consistency is worth asking about when you compare led light bar manufacturers, because output figures are easy to print and a seal that survives three winters is not.
