Product Overview

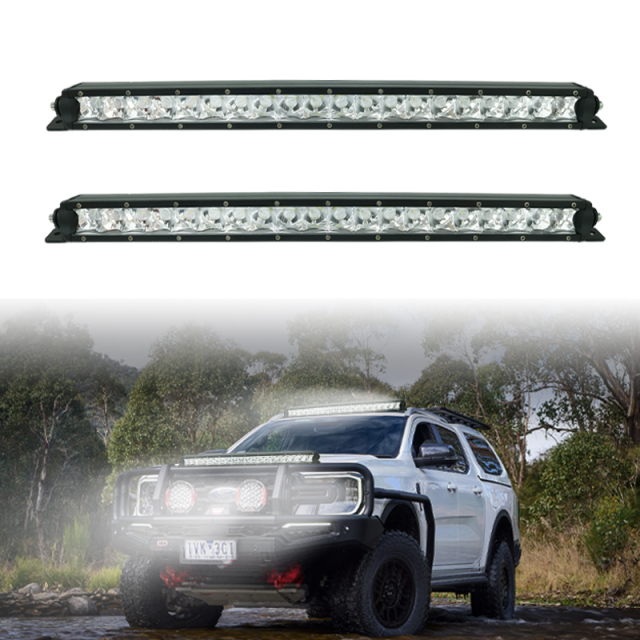

Twenty-two inches of straight, single-row light, built for vehicles that spend their evenings away from the highway. This off road LED light bar runs one line of high-output LEDs inside a die-cast aluminium housing, behind a polycarbonate lens sealed against water and dust, so rain, mud, snow and the grit thrown up by a dirt road stay where they belong. The output is cool white, the housing is black and the lens is clear, which means it settles into a roof rack or a bumper without drawing attention until you switch it on. The single row LED light bar format is the point of the design. One row keeps the housing shallow front to back, so it mounts flat on a roof rack, a front bumper, a grille or a headache rack where a deeper bar would foul the fittings or stand proud of the bodywork. It also throws one clean band of light down the road instead of several overlapping pools, which is easier on the eye over a long night drive. Most of these bars end up on working vehicles, so it is built as a LED light bar for trucks first: bracket mounting, a housing that shrugs off the vibration of a loaded pickup, and a straight body that fits the space above a cab or behind a grille.
Product Advantages
The single row LED light bar shape also keeps the housing shallow, so it slots into the gap between rack crossbars or behind a grille without blocking airflow, and it stays clear of a winch, a plate or a tow hook. Where the money goes An LED rarely dies because it was switched on too often; it dies because the heat it makes has nowhere to go. Die-casting costs more than folding a shell from sheet steel, and that is exactly why the body is cast: it spreads heat across the whole housing instead of trapping it behind the emitters, so output holds through a long night's work rather than fading as the bar warms. It is also the part of a light that LED light bar manufacturers cannot put right later with a better connector or a new lens, which is why it gets the attention first here. Why shops settle on one model Buyers who compare off road LED light bar suppliers are usually trying to cut the number of lines they carry without leaving holes on the shelf. A straight bar of this length is a good anchor for that: it covers pickups, trailers, Jeeps, UTVs and yard equipment, it mounts with brackets rather than fabrication, and it needs no explanation at the counter beyond where it fits and how it is wired.
Installation & Mounting
- Choose the position before you drill — roof rack, front bumper, grille or headache rack. This LED light bar for trucks and 4x4s is a flat, straight body, so any solid flat panel works; keep it clear of the driver's eye line, out of the wiper arc and away from anything that gets hot.
- Fix the brackets to structure, not trim — offer the brackets up, mark the holes and bolt them to metal or a reinforced panel. A bracket screwed into thin plastic will move, and a moving bar shakes its beam down the road.
- Aim it, then tighten — set the angle with the bracket at night, on level ground, so the top of the beam lands on the road ahead rather than in the trees, then torque the fixings down and check that the bar cannot be rocked by hand.
- Wire it as its own circuit — this is a 12V LED light bar, so give it a fused feed through a relay and a switch rather than tapping an existing lamp wire; use the plug-and-play lead where it reaches and keep the connector out of the spray.
- Test everything switched on — headlights, heater fan and wipers running together, then check that the bar does not dim or flicker and that nothing on the vehicle interferes with it.
- Record what you did — note the mounting points and the circuit the bar is fed from on the job card, so the next service does not disturb the aim or pull the wrong fuse.
Use Scenarios
- Trail driving after dark — where the headlights run out at the edge of the track, this off road LED light bar carries the beam further and wider, so you read the ruts, the washouts and the next bend instead of guessing at them.
- Working a yard or a dock after the floodlights go off — on a forklift mast or a yard tractor, the bar picks out pallets, kerbs and painted markings, and the sealed housing takes the wash-down that comes with the job.
- Boat decks and workboats — aluminium and a sealed lens cope with salt air and spray, so the bar earns its place on a foredeck or a small workboat where the light has to stay steady in a chop.
- Emergency and site response vehicles — a low profile LED light bar leaves the roof clear for a beacon, so a rescue truck or a site 4x4 can carry both without stacking hardware onto the same few inches of sheet metal.
- Quads and side-by-sides — a LED light bar for ATV and UTV builds has to be compact; this one mounts across a front rack or onto a cage without overhanging, and the adjustable bracket aims it down the track rather than at the sky.
Specifications
| Brand | JOPOWER |
| Configuration | Single row, straight bar |

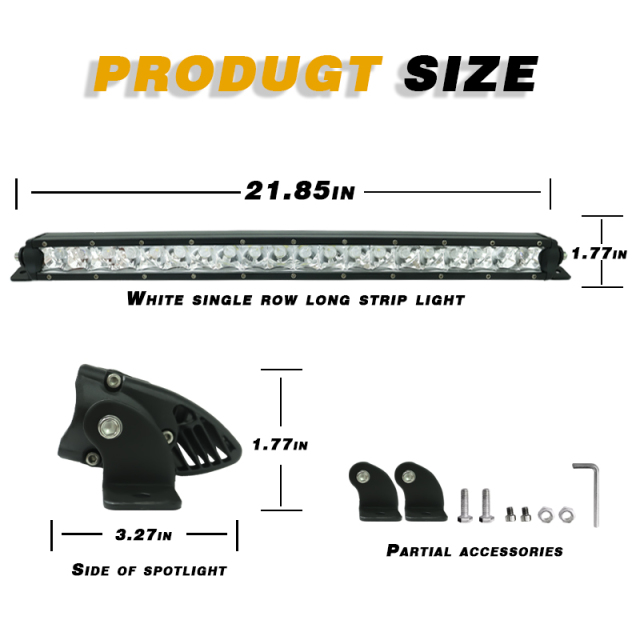

| Length | 22 inch |

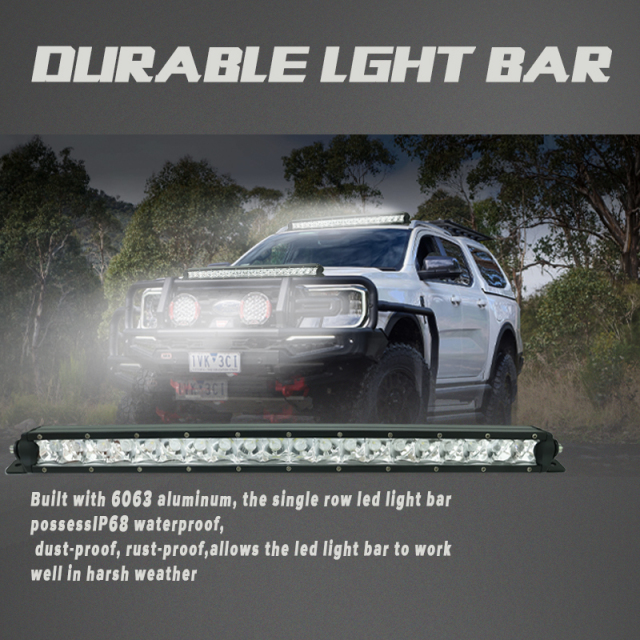

| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Finish | Black housing, clear lens |
| Light colour | Cool white, LED |
| Voltage | 12 V DC |
| Water and dust rating | IP67 |
| Service life | More than 50,000 hours |
| Beam | Straight, long reach with wide spread |

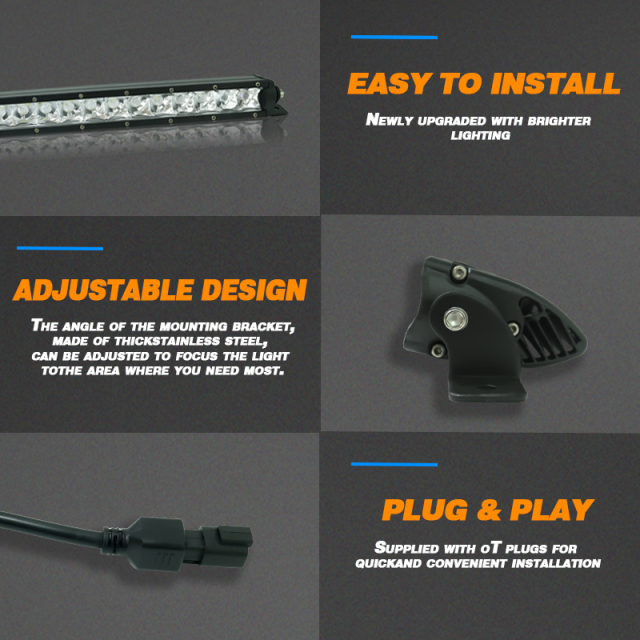

| Mounting | Bracket mounted, adjustable angle |

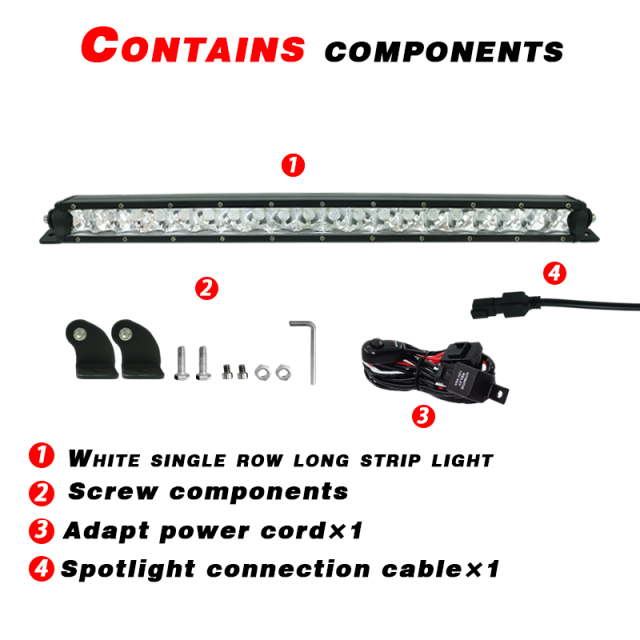

| Supplied with | Light bar, mounting brackets, screw hardware, adaptor power cable, spotlight connection cable |
| Typical vehicles | Jeep, 4x4, SUV, pickup, trailer, ATV, UTV, forklift, bus, boat |
Ordering & Delivery
- Send the brief — if you are comparing off road LED light bar suppliers for a fleet upfit or a new shelf line, send the vehicle list, the mounting positions and the quantity, and we will come back with the bar count, the brackets and a quotation.
- Agree the specification in writing — finish, connector and cable length for stock orders; specification, style, size, colour, logo and packaging for custom runs. Nothing goes into production until the details are confirmed.
- Keep custom work in-house — logo, packaging and specification changes are handled by our own production team rather than subcontracted to other LED light bar manufacturers, so what is agreed is what gets built. Ask your sales contact about sample availability before a first bulk order.
- Tell us if a vehicle runs a 24 V system, or if you want it switched from an existing auxiliary panel: this is a 12V LED light bar, so we will confirm what the vehicle needs before shipping.
- Shipping — we work to 7-day fast shipping on in-stock items. Confirm the current lead time and freight terms with your sales contact before you plan a launch or a promotion.
- Payment and packing — payment terms, packing format and freight costs are confirmed on your quotation, and mixed orders across our range are welcome.
- Check the local rules — what counts as legal auxiliary lighting varies by market, so confirm the requirement for your customers before a large run; we will confirm the bar's specifications for your paperwork.
Scale & Supply Capability
JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

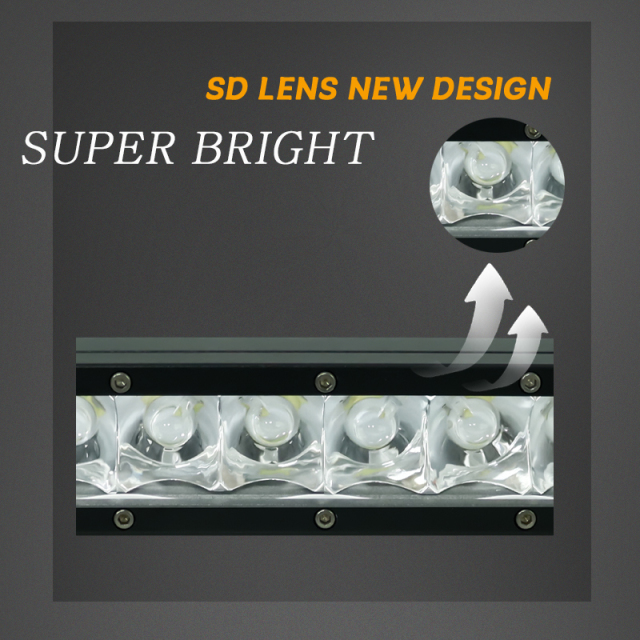

- Super bright, cool white output — a continuous row of high-output LEDs gives a long throw and a wide view of the verge, so the shoulder, the marker posts and the next bend arrive before the headlights reach them. - Single row, straight body — this single row LED light bar keeps its emitters in one line inside a slim straight housing, so it mounts flat and low; there is no deep reflector stack behind the lens and nothing to snag on a branch. - Sealed and protected — an IP67 rating covers water and dust, and the assembly is built to resist shock and corrosion, which is what lets it live through wet roads, standing water, snow, wind-blown sand and a pressure wash at the end of the day. - Heat spread, not heat trapped — the die-cast aluminium body is the heatsink, carrying heat away from the emitters across the whole housing so the light holds its output hour after hour instead of fading as it warms. - Wide application — off-road, on-road, work and outdoor lighting all fall inside its range, from a trail Jeep to a yard forklift to a boat deck, and it works as a LED light bar for ATV and UTV builds where a deep housing will not fit. - Low profile where it matters — the body sits close to its mounting surface, which is what makes this a low profile LED light bar rather than one that stands off the roof; it clears rack crossbars and cab lines and is less likely to be clipped on a tight track.
FAQ
What materials are used in the construction of this LED light bar?
The housing is die-cast aluminium and the lens is polycarbonate. Aluminium pulls heat away from the emitters and resists corrosion; polycarbonate stays clear and takes an impact without cracking the way glass would. Together they let the bar handle heat and stone chips at the same time, which is the pairing most LED light bar manufacturers settle on for a light that has to work outdoors all year.
Is this light bar customizable for different vehicle types or lighting needs?
Out of the box the bar is not vehicle-specific: the brackets mount to a flat surface and the housing is compact enough for a bumper, a roof rack or a grille, so it suits Jeeps, pickups, SUVs, ATVs, UTVs, forklifts and boats without changes. Beyond that, specification, style, size, colour, logo and packaging can be tailored on our own lines — it is the request buyers put to most off road LED light bar suppliers, and here it is handled by the people who build the bar. Send the vehicle list and what you want changed, and we will tell you what is practical.
How difficult is it to install this light bar on a truck or trailer?
It is not difficult, but it is not a five-minute job either. The brackets bolt to a flat panel, the angle is set before the final tighten, and the wiring wants a relay and a fused feed rather than a tap into an existing lamp. Most competent DIY installers can handle a single vehicle; for a fleet, or where the bar sits on a trailer frame that flexes, have it fitted professionally so the mounting and the wiring get inspected. As a LED light bar for trucks it is about as straightforward as a bar of this size gets.
What maintenance is required to keep it working in harsh outdoor conditions?
Less than you would expect, because the IP67 seal keeps water and dust out of the housing. What does matter is the small routine: wipe the lens when it is dirty, since a film of mud or road salt costs more light than most people realise; check the bracket bolts after the first long run over rough ground and again at service intervals; and look at the connector whenever the bar has been through deep water or a pressure wash. If the lens ever looks cloudy on the inside, that is a seal problem rather than an emitter problem — stop using it and get in touch.
Where can I mount it, and can I aim the beam?
Anywhere there is a flat surface and a solid fixing: roof rack, front bumper, grille, headache rack or trailer frame. The brackets are adjustable, so you set the angle before the final tighten and point the light where you actually need it rather than straight ahead. The low profile LED light bar shape helps here — a shallow body sits close to its mounting surface, so it clears rack crossbars and cab lines that a deep housing would foul.
Will it run on my vehicle's electrical system?
Yes for the great majority of vehicles. This is a 12V LED light bar built for standard vehicle electrics, which covers pickups, 4x4s, SUVs, ATVs, UTVs and most yard equipment. Tell us before ordering if a vehicle runs a 24 V system, or if you want the bar switched from an existing auxiliary panel, and we will confirm whether the standard bar suits it or whether something else in the range fits the job better.
Does it suit ATV and UTV use?
Yes, and the size is usually what decides it: a slim 22-inch body fits across the front of a quad or onto the cage of a side-by-side, where a deep or very long bar becomes awkward. The adjustable bracket lets you aim it down the track, the sealed housing handles mud and water crossings, and it runs from the machine's own battery. As a LED light bar for ATV and UTV work it is a common choice for exactly those reasons.
What does the beam look like at night?
