Product Overview

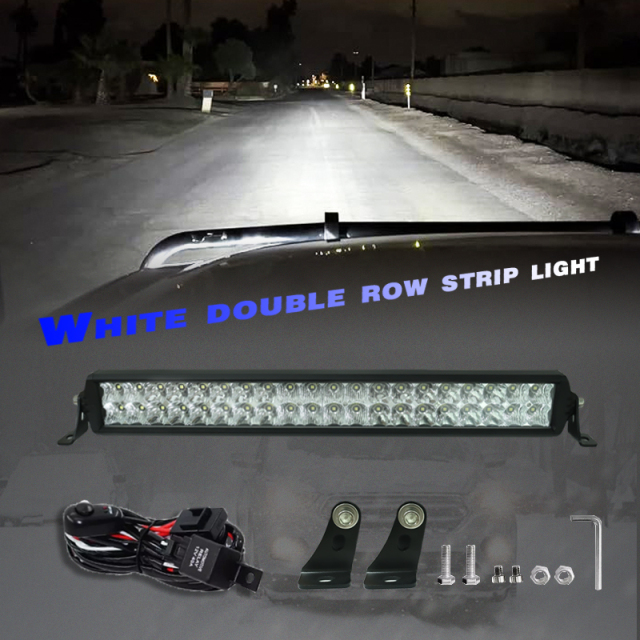

Twenty-two inches of double-row LED, aimed at the dark stretch past your headlights. The bar runs a combo pattern: the centre section throws a tight spot down the road while the outer LEDs spread a wider flood across the verges, so the shoulder and the pothole are lit at the same time. Bolt it to a front bumper, a bull bar or a roof rack and it takes over where a factory headlight gives up — which is the whole reason a driver goes looking for an off road led light bar in the first place. The 22-inch length is the practical middle of the range. It is long enough to light a two-track trail and short enough to sit on a pickup's front bar without overhanging the corners, which is why it turns up so often as a led light bar for trucks that also do farm, site and towing work. SUVs, 4x4s and smaller utility vehicles take the same bar on a rack or a bumper tab. Housing, lens, brackets and wiring are assembled and checked on our own line in Dongguan, and because the tooling is ours, the specification, finish, logo and packaging can be adapted for a private-label run instead of being locked to somebody else's catalogue.
Key Features
- Combo beam with a usable centre — a spot section for distance plus a flood section for width, so the road ahead and its edges stay lit together instead of one at the expense of the other.

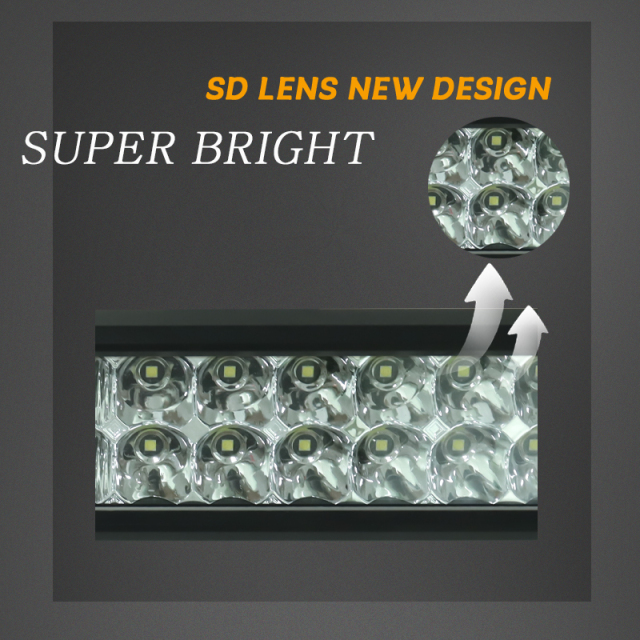

- Two LED rows behind one lens — the stacked layout packs more emitter area into 22 inches than a single-row bar of the same length, without making the housing any longer.

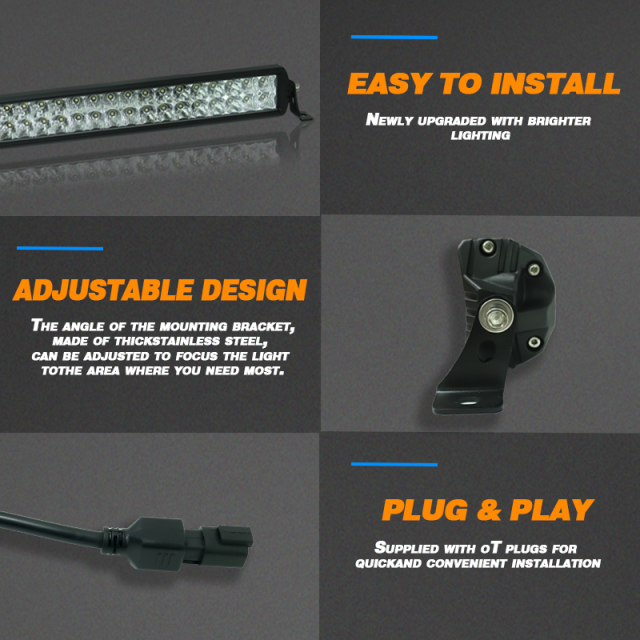

- Aim it after it is bolted on — the brackets let you set the angle before the final tighten, so the beam lands on the road rather than in the treeline.
- Holds its line over corrugations — the bracket set locks the bar down at both ends, so a day of washboard track does not leave the light pointing at the hedges, a common complaint with a lower-spec truck LED light bar.
- A size that covers several jobs — short enough for a quad or a tight bumper, long enough for a pickup roof rack, so one part handles more than one fit on a shop's offroad LED light bar display.
- Built and inspected in-house — every unit is assembled, checked and packed on our own line, which is what lets led light bar manufacturers like us repeat the same build on your next order.
Fitment & Compatibility
Fit comes down to the mounting surface, not the badge on the grille. Measure the flat width you have on the bumper, bull bar or roof rack, check that both bracket feet land inside it, and make sure the bar clears the bonnet line and any aerial. Most led light bar for trucks installations use a two-point bracket pattern, but a curved bumper or a rack with round crossbars may want an adapter plate — send a photo of the mounting area and we will tell you what we would use.
Cars, SUVs, ATVs and side-by-sides take the same bar. On a quad or UTV it is usually clamped to the front rack or the cage, the common led light bar for atv position; on a boat it goes on the console top or a radar-arch bracket. Keep the bar clear of winches, spare wheels and covers, and check the rack's own load rating if you are clamping to crossbars.
Electrically this is a 12V DC unit, so it suits the usual 12V led light bar circuit on light trucks, passenger cars and most utility vehicles. If your machine runs a 24V system, or you are not sure how the auxiliary circuit is fused and switched, talk to us or your auto electrician before wiring — a converter or a relay may be needed, and it is better to ask first than to replace a wiring loom.
Use Scenarios
- Unlit trails and overland routes — ruts, washouts and livestock show up earlier with a combo pattern, which is what most drivers want an off road led light bar for.
- Construction and maintenance sites — night pours, plant yards and depot work where a work vehicle needs the ground in front lit without rigging temporary floodlights.
- Agricultural vehicles — sprayers, loaders and field pickups running before dawn or after dark, where dust and spray are part of the shift.
- Forestry, mining and remote logistics — haul roads and loading areas where visibility drops with dust, rain and wheel spray.
- ATV, UTV and side-by-side work — clamped to a front rack or cage, the same bar does duty as a led light bar for atv on farm quads and trail machines.
- Marine and dockside — service boats, slipways and yard work where moisture is constant and the light has to keep working.
- Shops and installers — auto parts stores and repair shops stock the bar alongside the work lights and switch panels they already buy from their off road led light bar suppliers.
- Yard and backup lighting — garages, outbuildings and reversing areas where a vehicle-mounted bar is easier than wiring a fixed lamp.
Specifications
| Specification | Detail |
|---|

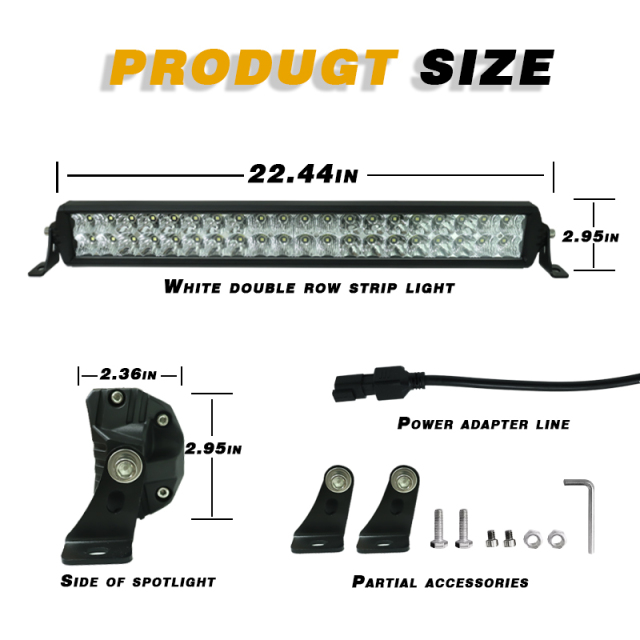

| Size | 22 inch |
| Configuration | double row |
| Beam pattern | combo spot and flood |
| Light colour | white |
| Operating voltage | 12V DC |
| Water and dust protection | IP67 |
| Beam adjustment | set before final tightening |
| Wiring | pre-fitted wiring with inline switch |
| Supplied cable | connection cable included |
| Vehicle fitment | pickup, SUV, 4x4 and ATV |
| Mounting locations | front bumper, bull bar, roof rack or roll cage |
| Component | Material or finish |
| Housing | anodized aluminum alloy Housing finish |
| matte black Lens | polycarbonate (PC) Mounting brackets |
| stainless steel Fasteners | stainless steel Heat path |
| housing body works as the heatsink Lens-to-housing joint | sealed Bracket mounting |
| both ends of the bar Corrosion protection | anodized housing and stainless steel fittings Lens protection |
| polycarbonate lens over the LED rows | |
Installation & Wiring
- Choose the mounting point — front bumper, bull bar, roof rack or roll cage — and offer the bar up before drilling anything. An offroad led light bar this long needs support at both ends, so check that both bracket feet land on flat metal.
- Bolt the stainless brackets to the bar loosely, then mark the mounting holes on the vehicle.
- Drill the holes, seal the bare metal and bolt the brackets down, leaving the angle bolts finger-tight for now.
- Route the wiring along the existing loom, clear of exhaust heat, belts and steering components, and tie it off at regular intervals so it cannot chafe.
- Connect the wiring to a switched live and earth it to the chassis. The bar is a 12V led light bar, so it takes the vehicle's normal auxiliary supply, and the inline switch lets you isolate it when the vehicle is parked.
- Aim the beam against a wall or on an empty road, tighten the angle bolts, then re-check them after the first rough trip.

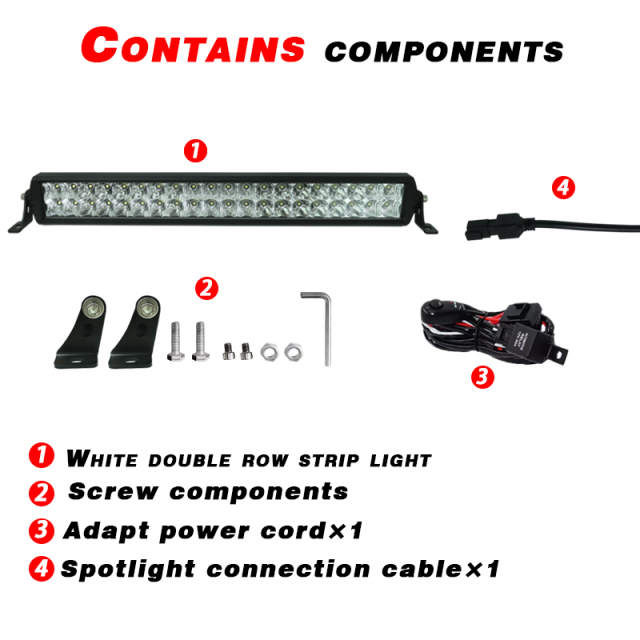

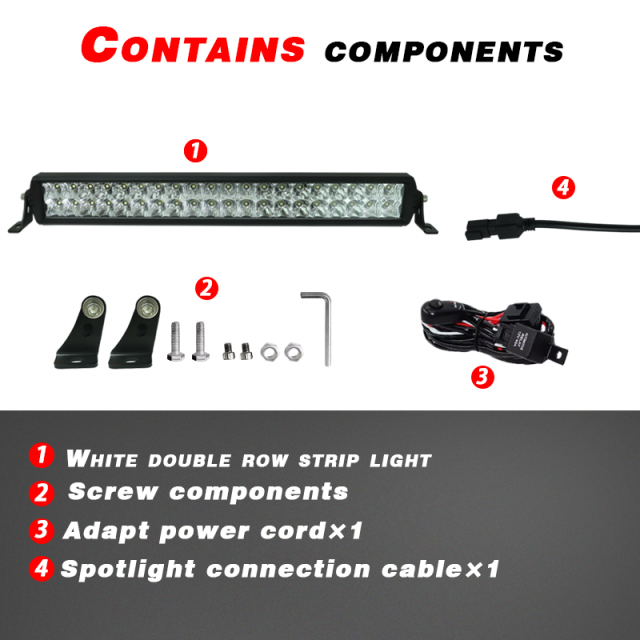

- The 22-inch double-row bar itself — lens fitted, joint sealed, wiring attached and run through its checks on our line before it is packed, so the unit you open is the unit that was tested.
- Two stainless steel mounting brackets, one for each end of the housing, packed with the bolts and screws for the bracket-to-bar joint.
- The wiring, already fitted to the bar and carried through to the inline switch, so there is no loom to build on the bench before you can test the light.
- An adaptor power cord and a connection cable long enough to reach your switched live and a clean earth point.
- A packing list inside the carton. Read it against what you take out before you drill anything; if a bracket or the cable is missing, tell us the day it lands and we ship the part rather than leaving you to order a second kit for one small item.
- Not in the box: relay, fuse tap, dash switch panel and hand tools. A 12V led light bar normally runs off the vehicle's own auxiliary circuit, but if you are building a standalone circuit, size the relay and fuse to it first — ask us and we will tell you what we use.
- A five-minute bench check before the bar goes near the vehicle: run a thumb along the lens edge to feel the seal, look for moisture or dust behind the polycarbonate, and dry-test the switch on a bench supply. Catching a problem there is far quicker than pulling the bar back off a bull bar.
Care & Maintenance
Washing and dust. The aluminum housing is the heatsink, so mud packed between the fins is more than a cosmetic issue — it holds heat against the LED board. Rinse the bar with low-pressure water and a soft brush after a muddy shift, and keep the jet off the seal line around the lens and the cable entry. A truck led light bar cleaned this way keeps its thermal margin instead of slowly cooking its own emitters.
The lens. Polycarbonate shrugs off stone strikes but not solvents. Mild soap, water and a soft cloth or sponge are all it needs; leave petrol, brake cleaner and abrasive pads in the cupboard, and never scrape ice off with a blade. A hazed or scratched lens scatters the combo beam and softens the cut-off the pattern depends on, so clean it rather than scrub it.
Fixings and connections. Stainless brackets and fasteners will not rust into a bumper the way plated steel does, but they can still work loose on corrugations. Put a spanner on the bracket bolts and the earth point after a long run over rough ground, and check the connector is fully seated and dry — water tracking down a badly routed cable causes more failures than the emitters do. Whenever the vehicle is on a lift, look along the cable route and confirm it is still tied clear of exhaust and moving parts.
Between jobs. Keep a spare bar indoors, lens up and connector capped, and bring it out when the season turns. On stationary site work the housing only sheds heat as well as the air around it moves, so give it room and switch off between tasks rather than leaving it running all evening. Treat the bar as lighting, not as a step or a tie-down point: a bent bracket throws the aim off, and that is a mounting problem rather than a light problem.
Ordering & Delivery
- Tell us the vehicle mix and the quantity you need. Because we are led light bar manufacturers rather than a trading desk, bracket, wiring and finish details can be matched to the order instead of being taken from a fixed catalogue.
- Confirm the specification — 22-inch double row, combo beam, and any change to finish, logo or packaging format. Those changes affect tooling and packing, so raise them before production is scheduled.
- Ask your sales contact about sample availability and the current production schedule before you commit to a volume.
- Approve the sample and the artwork; we then schedule production and inspect every unit before it is packed.
- Stock configurations move on our 7-day fast shipping — confirm transit time and cost to your address with your sales contact.
- As off road led light bar suppliers we keep the bracket and wiring specification on file, so a repeat order matches the last shipment rather than starting from scratch.
- Mixed orders are normal: a truck led light bar order often travels with work lights, pods or switch panels from the same range, so ask for a combined packing list when you are restocking several lines at once.
Scale & Supply Capability
JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.
FAQ
What materials are used in the construction?
The housing is anodized aluminum alloy, the lens is polycarbonate, and the mounting brackets and fasteners are stainless steel. Aluminum pulls heat away from the LED board, polycarbonate takes stone strikes without clouding over, and stainless keeps the bracket set from rusting into the mounting surface. It is the material set led light bar manufacturers settle on for bars that see road salt and mud rather than showroom duty.
How does the double-row beam compare with a single-row bar of the same length?
Two rows behind one lens give more emitter area in the same 22 inches, so the combo pattern holds a stronger centre while still spreading wide at the edges. A single-row bar is slimmer and lighter and easier to tuck into a tight space, but it generally puts less light into the same footprint. If your priority is output from a bar that still fits a compact bumper, the double row is the better trade; if clearance is very tight, go single row. Either way this is a spot-and-flood mix, not a pure flood off road led light bar.
How difficult is the installation?
Straightforward for anyone who has fitted auxiliary lighting before. The brackets, bolts and screws come with the bar, the wiring and inline switch are already fitted, and the bracket slots line up with the usual mounting points on pickups, 4x4s and SUVs. You need standard hand tools, a drill for the mounting holes and a switched live to connect to. There is no cutting into the vehicle's own lighting loom, which keeps a truck led light bar fit inside a normal workshop slot rather than a full day.
Will it survive rain, dust and corrugated roads?
The bar is rated IP67: dust-tight, and protected against water immersion up to one metre, which covers rain, road spray, mud and the wash-down after a shift. The stainless brackets and sealed lens joint handle the vibration and corrosion side. Every led light bar for trucks we ship is inspected and packed after assembly rather than going straight from the line into a carton, so what arrives is what was checked.
Can we have a custom version built for our range?
Yes. Specification, style, size, colour, logo and packaging can all be adjusted for a private-label run, and as off road led light bar suppliers we work from your target vehicles and price position rather than pushing a fixed catalogue item. Send the vehicle types, the finish and any branding artwork you already have, and we will come back with what can change, what cannot, and what it does to the production schedule.
Will it fit an ATV or a side-by-side?
It fits, provided you have a flat mounting point on the front rack or the cage. The bar is used as a led light bar for atv on farm quads and trail machines, and the adjustable brackets let you angle it down towards the track instead of straight ahead. Check that it clears the handlebars on full lock and that the wiring has a clean route back to the battery or the auxiliary fuse block.
What comes in the box, and how does it wire up?
The bar, a pair of stainless mounting brackets with bolts and screws, an adaptor power cord and a connection cable. The cable carries an inline switch, so wiring means connecting to a switched live and an earth rather than building a loom yourself. Everything is set for a 12V led light bar circuit; if your vehicle runs 24V, ask us about a converter before you connect anything.
Can I mount it on a roof rack or a roll bar?
Yes — roof racks, bull bars and roll cages are all normal mounting points. An offroad led light bar mounted high throws further and lights over obstacles, but it also picks up glare from a dusty windscreen, so aim it slightly lower than you would a bumper-mounted bar. Set the angle with the bracket slots before the final tighten, and check the rack's own load rating if you are clamping to crossbars.
