JOPOWER Curved Led Light Bars Spot Flood Combo Slim Offroad Lightbar

Double-row LED light bar, super bright combo beam, IP67 waterproof, durable aluminum housing, adjustable bracket, ideal for vehicles, off-road, and outdoor lighting.
Brand
JOPOWER
Material
Aluminum, Polycarbonate (PC)
Color
White
Light Source Type
LED
Voltage
12 Volts (DC)
Vehicle Service Type
Bus, ATV, Van, Car, Truck, Snowmobile, Tractor, Trailer
  • JOPOWER Curved Led Light Bars Spot Flood Combo Slim Offroad Lightbar
  • JOPOWER Curved Led Light Bars Spot Flood Combo Slim Offroad Lightbar
  • JOPOWER Curved Led Light Bars Spot Flood Combo Slim Offroad Lightbar
  • JOPOWER Curved Led Light Bars Spot Flood Combo Slim Offroad Lightbar
  • JOPOWER Curved Led Light Bars Spot Flood Combo Slim Offroad Lightbar

Description

Product Overview

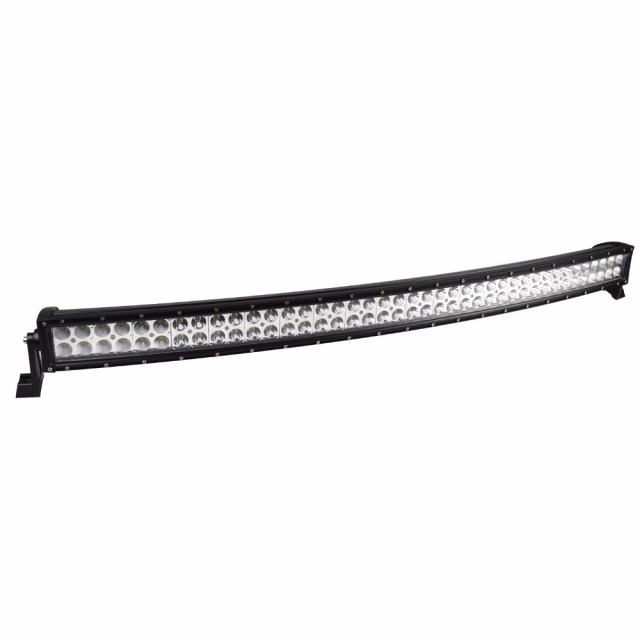

The JOPOWER curved led light bar is the slim, double-row bar we build for pickups, SUVs, UTVs and boats. A spot core and a flood wash sit in the same housing, so the light reaches a long way down the track and still picks up the verges on either side. The curve is the part that changes the drive. A flat bar throws a wall of light straight ahead; this one follows the arc of the road and finds the edge, the marker post or the animal before you are on top of it. Shops and resellers carry led light bars for trucks because one bar has to answer a lot of customers — a farm pickup, a weekend 4x4, a service van, a boat trailer. That is exactly why this model is deliberately broad. The housing sits flat on most mounting surfaces, the brackets take up the angle difference between a roof line and a bumper, and the combo beam covers the buyer who has not yet decided whether they want distance or spread. On a parts counter, one bar that serves that many vehicles is easier to explain than five part numbers.

Curved Beam Coverage

  • Light that follows the road. The arc pushes output out to the shoulders as well as down the centre, so the curved led light bar picks up the inside of a bend well before the headlights would.
  • Spot and flood in one housing. The spot section concentrates light for distance and the flood section fills the near field and the edges. One bar, both jobs, and a driver who never has to choose between them.
  • A low profile led light bar that stays out of the way. The slim body keeps rooflines, windscreens and antennas clear, which matters on height-limited vehicles, low garage doors and racks that already carry a tent or a ladder.
  • Shaped for the vehicle, not against it. Roofs, hardtops and cage tubes are rarely flat. A curved bar sits closer to that surface than a straight one, leaving a smaller gap for wind noise and branches to catch.
  • Where the curve earns its keep. Unlit back roads, forest tracks and site access roads, where the danger sits at the edge of the beam rather than in the middle of it.
  • Narrow machines benefit most. On a short roof line or a tight cage, an led light bar for atv use gets a wide spread without needing a bar longer than the machine itself.

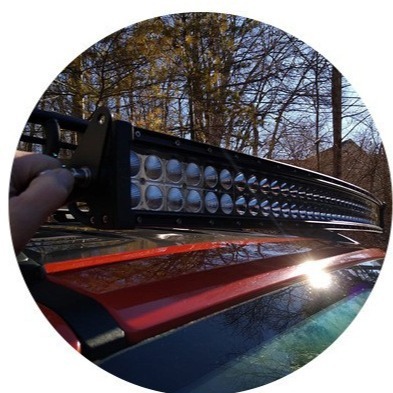

Installation & Aiming

  1. Choose the position and check clearance. A roof rack, bull bar, bed rack, boat hardtop or UTV cage all work, but the bracket needs a flat surface plus room behind the bar for the cable exit and the pivot. On a height-limited vehicle, measure the roofline before anything is drilled.
  2. Offer the bar up and mark the holes. Sit the low profile led light bar in place, follow the curve with your eye to confirm both ends land on solid tube or steel rather than plastic trim, then mark through the bracket slots.
  3. Bolt through with the supplied hardware. Put the textured pads between bracket and mounting surface to protect the finish, fit the bolts and nuts, and snug them down without overtightening.
  4. Set the aim. Loosen the two pivot bolts, tilt the bar through its range and lock it off. Aim slightly down — the point is to light the road surface ahead, not the tree canopy or the cab of the truck in front of you.
  5. Wire it as a 12v led light bar should be wired: through a fused relay and a dash switch, with a clean earth to the chassis, rather than straight off the battery terminal.
  6. Test at night on level ground. Check the cut-off against a wall at a short distance, then drive a slow pass to confirm the spread reaches the verges without dazzling oncoming traffic.

Use Scenarios

Recreational and off-road. Club runs, forestry tracks and unlit access roads are where the curve shows its value, because the beam reaches the edge of the track at the same time as it reaches ahead. The same bar goes onto a ranch pickup for checking fences and irrigation after dark, and onto a UTV or quad for night rides where a wide spread matters more than a long throw.

Commercial and utility work. Fleet pickups, service bodies, tow trucks, agricultural vehicles and site plant all use auxiliary lighting the same way: to keep working when the light runs out. Shops selling led light bars for trucks tend to specify this model because the combo beam suits a mixed customer base — one buyer wants distance on the highway, the next wants spread around a yard — and the sealed housing copes with dust, mud and vibration in between.

Practical jobs around a property. Buyers also fit this bar as a reversing light on a yard trailer, to light a workshop apron or storage yard, or on a boat hardtop for the run back to the mooring. It is the kind of work that never appears in a brochure but keeps a bar moving off the shelf.

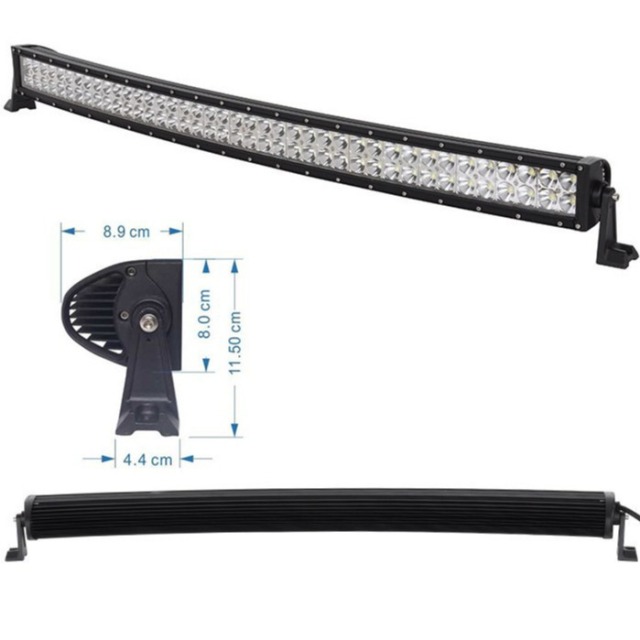

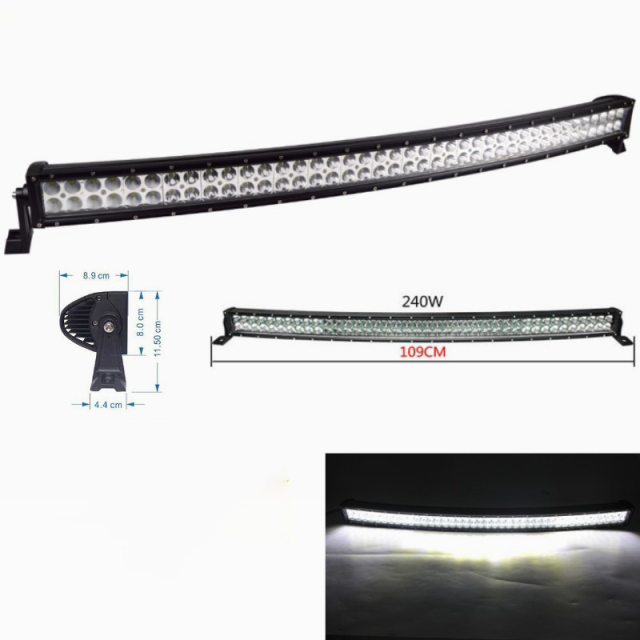

Specifications

- White output held steady. The diodes are driven to keep their colour consistent across the width of the bar, so the far field and the near field read the same instead of one looking warmer than the other. - Sealed for the conditions it works in. An off road led light bar spends its life in grit, mud spray and the pressure washer at the end of the day. The one-piece housing and gasketed lens leave few seams for water to find, and the lens wipes clean without clouding. - Heat handled properly. Aluminium heat sinks and conductive silicone gel pull heat away from the board, which is what keeps the beam white and the output level after an hour on a hot night. - A breather vent, not a sealed box. The moisture-breathing hole equalises pressure behind the lens so condensation does not fog the glass when the temperature drops overnight. - Fixings in the box. Two side brackets, bolts, nuts, textured pads and the Allen key ship with the bar, so an installation does not stall on a missing bolt. - An aim that stays put. The bracket is a clamp-and-pivot rather than a slotted plate. Once the bolts are snug the angle holds through washboard tracks and potholes. - One bar across many vehicles. Pickups, SUVs, 4x4s, boats, trailers, UTVs and ATVs. The bracket mounts to a flat surface, so the same model moves between vehicle types — including as an led light bar for atv or side-by-side use. - Built and tested in one plant. Housing, board and final test all come out of our own factory, so what you approve on a sample is what runs in production. That is the practical difference between buying from led light bar manufacturers and buying from a reseller: a bracket change or a carton change does not wait on someone else's line. - Straight answers before the run. Most off road led light bar suppliers quote from a catalogue page. Send us your vehicle list, your mounting position and a photo of the surface, and we will confirm the bracket kit against it before anything is scheduled.

PropertyValue
BrandJOPOWER
HousingDie-cast aluminium alloy
LensPolycarbonate (PC)
Mounting bracketsStainless steel, two side brackets
Beam patternSpot and flood combo
Row configurationDouble row
Voltage12V DC
Waterproof ratingIP67
Rated lifeOver 30,000 hours
Beam adjustmentUp to 45 degrees

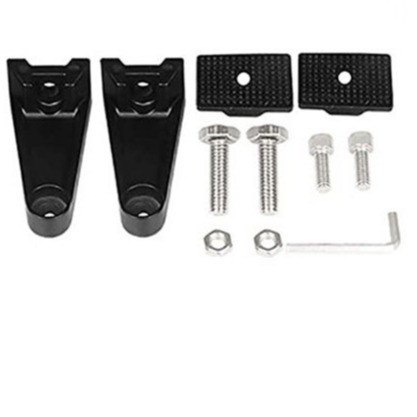

Fixings suppliedBrackets, bolts, nuts, textured pads and Allen key

Ordering & Delivery

  1. Send the vehicle and the mounting position. Tell us whether the bar is going onto a registered road vehicle or a pure off road led light bar build, because the mounting surface and the switching setup differ between the two.
  2. Confirm the supply and switching. This is a 12v led light bar built for a 12V vehicle system; if the vehicle runs a 24V system, say so before ordering so we can confirm the correct arrangement with you.
  3. Raise branding and packing before the run is scheduled. As off road led light bar suppliers we can change a bracket, a cable length or the carton artwork at the production stage, so anything of that kind is preferably agreed up front rather than after the order is locked.
  4. Ask your sales contact about sample availability and current terms if you need to see a unit before committing to a larger run.
  5. Confirm the shipping window for your quantity and destination with your sales contact — in-stock items move on our 7-day fast shipping schedule.

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

About Us page for Dongguan Spotlight Lighting with factory and certificationsFactory capability infographic with production lines, CNC workshops and testing labsAutomotive LED lighting customization services infographic with packaging and branding optionsSix-step customization and order process infographic

FAQ

What materials are used in the construction of this curved LED light bar?

The housing is die-cast aluminium alloy, the lens is polycarbonate and both side brackets are stainless steel — the combination led light bar manufacturers use for off-road work because it resists rust, impact and heat together. Bolts, nuts, textured pads and the Allen key for the brackets come with the bar. We cast and machine the housing in-house, which is how the finish stays consistent from one order to the next.

Can this bar be fitted to commercial trucks?

Yes. The two side brackets pivot, so the bar can be tilted to suit a roof deflector, a headache rack or a front bumper on a commercial vehicle, and the slim housing keeps it inside the vehicle's silhouette. Shops fitting led light bars for trucks usually pair it with a fused relay and a dash switch so the bar works independently of the headlights. Send us the truck model and mounting position before ordering and we will confirm clearance and bracket fit.

Will it survive harsh weather and long outdoor use?

The housing is rated IP67, which means it is dust-tight and protected against water jets, so rain, mud spray, pressure washing and road dust stay outside the limit of the rating. Beyond the number, the die-cast body and gasketed lens leave few seams for water to reach, and the breather vent equalises pressure so condensation does not build up behind the glass. An off road led light bar works in exactly those conditions, so the seals and the vent matter as much as the diodes.

How long will the light bar last, and how much maintenance does it need?

Rated life is over 30,000 hours, and the figure rests on the heat path behind the LEDs: aluminium heat sinks and conductive silicone gel pull heat off the board instead of letting it collect behind the lens. Day-to-day upkeep is a wipe of the lens and a check that the bracket bolts are still snug after the first few hundred kilometres. That heat path is also why off road led light bar suppliers can put a service-life figure on a bar this slim in the first place.

Does it run on 12V, and what wiring does it need?

It is a 12v led light bar designed for a standard 12V DC vehicle supply. Wire it through a fused relay and a dash switch with a clean earth to the chassis rather than running it straight off the battery. If the vehicle uses a 24V system, tell us before the order is placed so the correct arrangement can be confirmed for your build.

Is the bar suitable for an ATV or a UTV?

Yes. The bracket bolts to a flat surface on a cage, rack or bumper, and the slim housing is easy to tuck out of the way on a small machine. Buyers fitting an led light bar for atv use usually mount at the front rack or along the top bar of the cage, where the curve gives a wide spread without hanging past the width of the vehicle. Check that both bracket ends land on solid tube rather than plastic bodywork.

Will the slim body fit behind a grille or in a tight bumper gap?

That is the main reason buyers choose this shape. A low profile led light bar leaves more usable space than a deep-housing bar of the same length, and the cable exits from the rear, so the bar needs clearance behind it as well as around it. Measure the gap, allow for the bracket and the cable run, and confirm the surface is flat enough for the pads to seat properly before you commit to the position.

How does the curved shape behave on a roof rack?

Roofs and racks are rarely flat, so the curve lets the curved led light bar follow the roof line and keeps the ends closer to the surface than a straight bar would. It still mounts on two side brackets at the ends, so the requirement is simply that both ends land on solid tube or steel. On a very narrow rack, check that the curve does not overhang the sides before drilling.

Will a repeat order match the finish and hardware of the first batch?

The die and the finishing line stay with us, so a repeat run is a re-run of the same set-up rather than a fresh guess. Led light bar manufacturers who change sub-suppliers between batches are where colour and fit drift come from; we keep casting, assembly and final test in one plant for that reason. If a repeat batch is going straight onto store shelves, ask your sales contact about sample availability before it is scheduled.
