JOPOWER 7 Inch 90W LED Work Light Pods Spot Flood Combo Beam Fog Lamp

7-inch LED work light with dual side shooter design, 5000LM brightness, IP67 waterproof, durable aluminum housing, ideal for off-road vehicles, trucks, boats, and more.
Brand
JOPOWER
Material
Aluminum die-cast housing
Waterproof rate
P67
Lifetime
50000H
Voltage
12-24V
  • JOPOWER 7 Inch 90W LED Work Light Pods Spot Flood Combo Beam Fog Lamp
  • JOPOWER 7 Inch 90W LED Work Light Pods Spot Flood Combo Beam Fog Lamp
  • JOPOWER 7 Inch 90W LED Work Light Pods Spot Flood Combo Beam Fog Lamp
  • JOPOWER 7 Inch 90W LED Work Light Pods Spot Flood Combo Beam Fog Lamp
  • JOPOWER 7 Inch 90W LED Work Light Pods Spot Flood Combo Beam Fog Lamp

Description

Product Overview

What it is

A 7-inch sealed LED work light pod built around a dual side-shooter layout. The centre reflector throws a spot and flood combo beam ahead of the vehicle, while the outer emitters push light out sideways so the verge, the wing mirror and the ground beside the front wheel are lit as well. Where a long bar will not go

Plenty of mounting points will not take the width of an off road led light bar — a winch bumper, a mirror arm, a cage tube, a boat console. This pod is sized for exactly those places, and because the side shooters do the wide work, one unit covers a corner and two cover the whole front end. A simple line to add to a range

Shops that already carry a led light bar for truck range can slot the pod in beside it: same housing story, same beam language, a fraction of the carton size and a much lower stock commitment. It reads as part of the same family on a shelf or a web listing rather than an odd extra. Buying from the led light bar manufacturer rather than a relabeller is the difference between a spec change being a conversation and a spec change being a maybe. - Side shooters close the blind spot. The two outer emitters sit at the edge of the reflector and throw light sideways, so the bumper corner, the verge and the ground beside the front wheel are lit instead of left as a dark wedge. - Spot and flood in one housing. The centre cluster carries a focused spot for distance and a wider flood for the ground directly ahead, so one pod does the work that otherwise needs two units bolted side by side. - 5,000 lumens from Cree LED chips. The combined output is a clean white that reads clearly against factory headlights, which is what you want when the pod is doing auxiliary duty rather than being the only light on the vehicle. - Output that holds over a long shift. The die-cast body pulls heat away from the chips, and the pods are rated for well over 50,000 hours of service — so the replacement conversation moves out of the yearly cycle. - Small enough for tight bodywork. Where a full bar will not fit, the pod gives you the same idea in a compact housing: a small led light bar's worth of spread on a mirror arm, a cage tube or a rear rack. - The near-field half of a led light bar for truck build. Resellers usually sell the long bar for distance and add a pair of pods for the sides and the ground around the bumper, so the customer leaves with a complete setup from one source. - Cage-friendly on an ATV or UTV. Cage width is what normally complicates a led light bar for atv fitment; two pods on the front tubes give the same close-range spread and stay inside the vehicle's width.

Housing, Lens & Heat Management

Die-cast aluminium, not folded steel

The body is cast aluminium with a ribbed heat sink across the back. That finning is what gives the Cree chips enough surface area to shed heat on a pod this small running at 90W, and it keeps the whole unit rigid on a bouncing mount. The finish is matte black, and the mounting bosses sit on both sides of the housing so the pod can hang either way round.

Polycarbonate lens over a reflector cluster

The lens is shock-resistant polycarbonate rather than glass, so stone chips, branch strikes and the occasional dropped spanner are less likely to end the pod's day. Behind it sits a multi-reflector cluster that shapes the combo pattern and sends light to the two side emitters. The unit is sealed to IP67: dust-tight and protected against short immersion, which covers rain, spray, mud and a sensible pressure wash. It is not built for continuous submersion, so keep the lead and connector out of standing water and clear any debris from around the housing.

Input that covers 12V and 24V

The driver accepts 12 to 24V DC, so the same pod works on a 12v led light bar circuit in a pickup and on a 24V truck or bus without a step-down box. If you sell into mixed fleets, that means one part number covers both rather than two stock lines.

Terminates with a sealed factory lead

Each unit leaves the factory with its lead already attached and sealed into the housing, so it goes into a led light bar wiring loom or a fused auxiliary block without the pod ever being opened. On a multi-vehicle install that is the difference between a five-minute fit and a bench job.

Spec changes made at the press

Housing colour, lens, bracket and branding are set on our own line, which is how a custom led light bar or pod programme gets run without a middle layer between your brief and production. It matters most when a colour or a bracket change has to hold across repeat orders.

Vehicle Fitment & Use Cases

  • Pickup and 4x4 front bumpers. Winch bumpers, light tabs and bull bars take the U-bracket directly. A pair set slightly outward covers the ground in front of the tyres and the flanks, sitting underneath the long throw of an off road led light bar on the roof or grille.
  • Jeep, SUV and 4x4 A-pillars. Windscreen and cowl brackets put the pod at roughly eye height, which is where side-shooter light earns its keep on narrow tracks, wooded trails and tight yard manoeuvring.
  • ATV and UTV cages. Front cage tubes or a roof rack, one pod per side. Cage width is usually what limits a led light bar for atv fitment; a pod stays inside the vehicle's width and clears the roof line.
  • Boats, tenders and marine consoles. Console tops, t-tops and transoms take the pod as a docking or deck light. The sealed housing copes with spray, and the beam can be turned down onto the deck instead of out at the water.
  • Work and utility vehicles. Forklifts, tractors, excavators, telehandlers and service trucks use the pod as a rear or side work light on ROPS frames and racks, aimed down at the task rather than forward at the road.
  • Truck fleets and service bodies. Fleets fit them at the rear as reverse and loading lights, and often as the close-range partner to a led light bar for truck roof or grille installation on the same vehicle.
  • Recovery and emergency vehicles. Scene lighting around a stranded vehicle or a roadside incident, where spread around the vehicle matters more than a long pencil beam down the road.

Specifications

Housing materialDie-cast aluminium alloy
LensShock-resistant polycarbonate
LED chipsCree LED
Power90W
Luminous output5,000 lm
Beam patternSpot and flood combo
Side outputDual side-shooter emitters
Voltage12–24V DC
Water and dust ratingIP67
Service life50,000 hours+
Mounting180° adjustable U-bracket

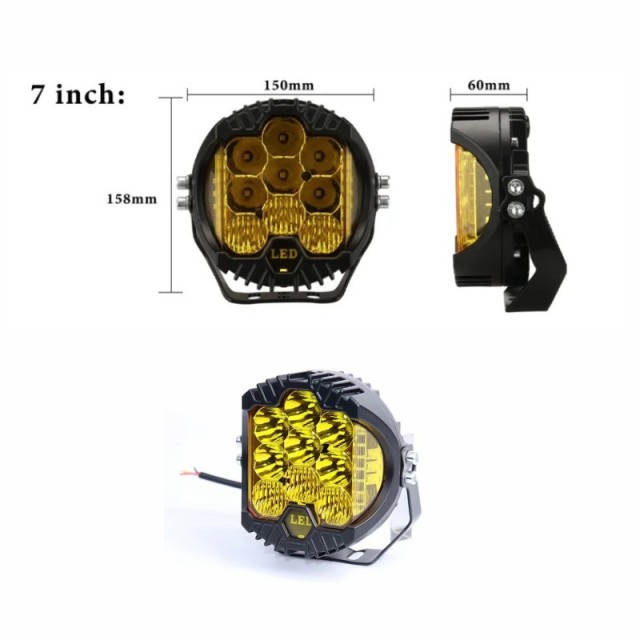

Pod size7 inch
Housing finishMatte black

Mounting & Beam Aiming

  1. Choose the mounting point and check the swing. Bumper tab, A-pillar bracket, cage clamp or rack — whichever you use, leave room for the bracket to pivot through its arc before you drill. On tight bodywork where a small led light bar would foul, the pod's compact bracket is usually the reason it fits at all.
  2. Fix the bracket before you hang the pod. Bolt the U-bracket to the surface first, then fit the pod on the pivot bolt and leave it finger-tight so the beam can still be moved.
  3. Route the lead clear of heat and movement. Take it down the frame or cage away from the exhaust, suspension and steering, and tie it off at regular intervals so it cannot rub through on a long drive.
  4. Terminate into a fused, switched circuit. A relay-driven auxiliary fuse block is the safe pattern; if the vehicle already carries a led light bar for truck use and the loom has spare capacity, tap that rather than running a second loom.
  5. Confirm the supply voltage before first power-up. The pod accepts 12–24V, so it will sit happily on a 12v led light bar feed or a 24V circuit — just check what the vehicle is actually delivering at the connector.
  6. Power up and check every zone. The centre spot, the centre flood and both side emitters should all light. If a side shooter stays dark, stop and check the connector before anything is sealed or trimmed.
  7. Aim, tighten, then re-check after the first run. Set the spot where you want the long throw, let the flood and side emitters cover the near ground, then torque the pivot. New mounts settle under vibration, so a two-minute re-aim after the first trail run or shift is worth doing.

Ordering & Delivery

Supply routeFactory-direct from the led light bar manufacturer
Shipping7-day fast shipping
Mixed shipmentsPods can travel with a custom led light bar run from the same factory
Minimum order quantityConfirmed for your model and destination with your sales contact
Payment termsAgreed with your sales contact at quotation
Lead timeConfirmed per order once quantity and branding are fixed
PackingStandard export cartons; display-ready and printed packaging to your artwork
Bulk and project ordersScheduled supply and shipment documentation for large consignments
Certification documentsCE and RoHS paperwork supplied with bulk orders
Order confirmationModel, quantity, branding and destination confirmed in writing before production

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

Company about-us page with factory building and certificationsFactory infographic showing production lines, CNC workshops and testing areasInfographic of OEM/ODM options: packing, logo, color, partsSix-step customization process infographic from contact to after-sales service

FAQ

What materials go into the housing and the lens?

The housing is die-cast aluminium alloy finished in matte black, and the lens is shock-resistant polycarbonate sitting over a multi-reflector cluster. Aluminium is used for the body because it pulls heat away from the Cree chips; polycarbonate is used for the lens because it takes stone chips and branch strikes that would crack glass. The U-bracket is a separate metal part bolted through the housing, and each pod leaves us with its wiring lead already attached.

How much adjustment do the mounting brackets give?

The bracket pivots through 180°, so the same pod can be aimed forward as a driving light, angled down as a work light, or turned back as a reverse light without re-drilling anything. Because the housing is compact, it also clears bodywork and cage tubes where a small led light bar of comparable coverage would foul. Set the aim with the pivot bolt just snug, run the light, then tighten it down.

Can these pods be built to our own specification and branding?

Yes. Size, colour, logo and packaging can all be set to your requirements, and the technical specification and styling can be adjusted for a house design. That is routine custom led light bar work for us, and the pod goes through the same process. Send the artwork and the target specification and we will confirm what is achievable before production starts.

Will the pod run on both 12V and 24V systems?

Yes — the input accepts 12 to 24V DC, so it drops straight onto a 12V pickup or a 24V truck circuit without a converter. That covers most 4x4s, light trucks, UTVs and boats, and it means a single 12v led light bar feed or auxiliary fuse block can run a mix of pods and bars on the same vehicle.

Should a build use these pods alone, or with a bar as well?

It depends what the vehicle is doing. Two pods up front cover the corners and the ground immediately around the vehicle well enough for yard work, site work and slow trail driving. For fast night driving you also want the long throw, which is when buyers pair the pods with an off road led light bar on the roof, grille or bull bar — the bar lights the road, the pods light everything the bar misses.

Do they fit an ATV or UTV cage?

Yes. The U-bracket bolts or clamps to cage tubing and roof racks, and riders normally fit one pod per side on the front tubes. Because it is a pod rather than a full-width bar, it stays within the cage width and clears the roof line, which is where a led light bar for atv build usually runs into trouble at the mounting stage.

What wiring does the pod need?

Each pod arrives with its lead already attached. Run it to a fused, relay-switched circuit — either a spare auxiliary fuse block or the vehicle's existing led light bar wiring if it has the capacity. Keep the connector dry and clear of standing water, and secure the lead so it cannot rub against the frame or catch on suspension travel.
