Product Overview
It is an off road LED light bar assembled from 5-inch square pods on a hinge-and-bolt frame instead of one pressed extrusion: black die-cast aluminium body, stainless steel fasteners, 6000K light modules throughout. Most LED light bar manufacturers seal one long housing and stop there. Linking pods does a different job. Each module keeps its own sealed body, the bar equalises pressure through a vent rather than pulling damp air past the lens, and the same pods can be joined into a wider or narrower bar when the next order needs a different width. Buyers arrive from both directions. Parts store owners and counter staff want one strong forward-lighting line instead of five near-identical bars; upfit shops and installers want a light that goes onto a pickup, SUV or light commercial truck without a fresh bracket design each time. The people using it are trail drivers, desert and mountain runners, farm and quarry crews — anyone whose day ends after dark. Most of them are replacing something: a bar that misted up after two winters, or one that was fine on a clear night and useless once the weather closed in. Day to day it is simple equipment. It mounts on the bumper or overhead, gets aimed once and then left alone, and the lens decides what you get — white for clear nights, yellow when visibility drops, spot, flood or combo covers when the shape of the beam has to change.
Light Features
- Throw and spread together — the bar gives a wide field of view and a concentrated throw for distance at the same time, so the driver sees the edge of the track and the next bend without switching lights.

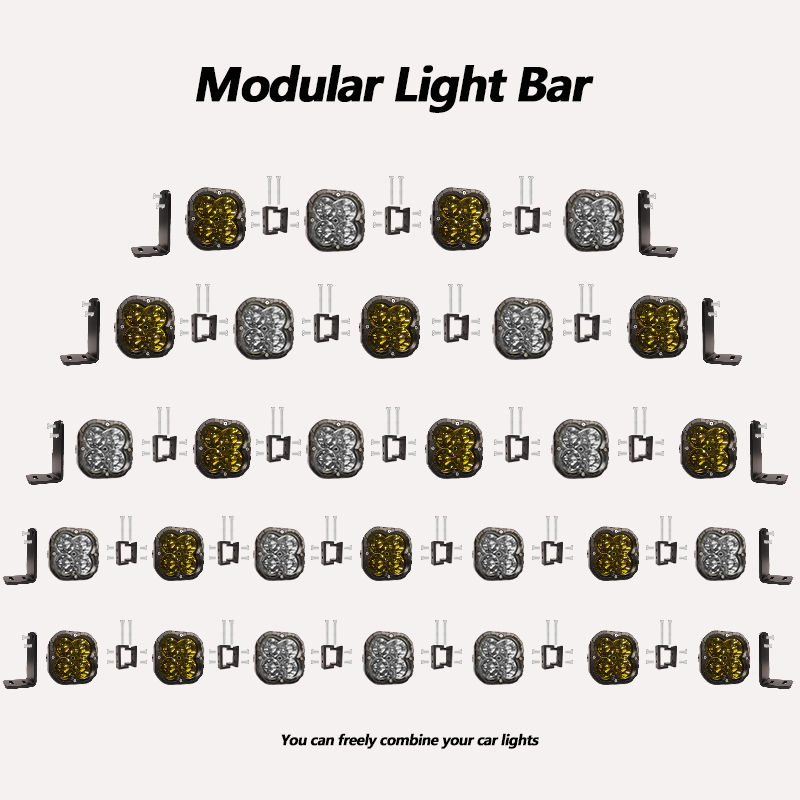

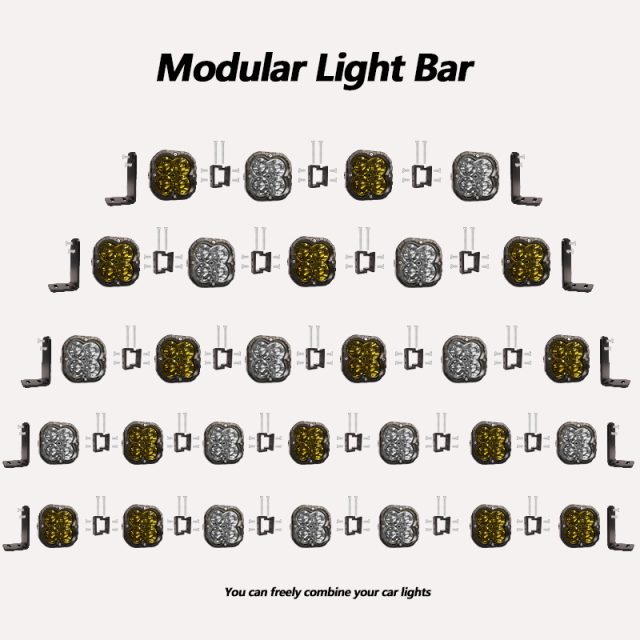

- A custom LED light bar, not a fixed length — beam pattern and bar width can both be customized, and the pods are offered as 4, 5, 6, 7, 8 and 9-module bars, so a compact bumper light and a full-width overhead bar come off one line.
- Each pod on its own input — every pod can be powered independently through its own separate input, so the bar does not have to be wired as a single block; on a 12V LED light bar for trucks that shares its loom with work lamps or a winch, that freedom matters.
- Stainless steel fixings — all screw accessories are stainless steel, which is what keeps brackets and screws workable after seasons of salt, mud and washdowns.
Mounting & Fitment
- Pick the position first — bumper and overhead are both listed mounting points. Low and close suits near-field work and keeps the bar out of the roofline; above the driver's eye line gives the longest throw down the track.
- Check the vehicle supply — the bar is rated 12 V to 24 V, so a 12V LED light bar and a 24 V installation use the same unit. Confirm which system you are on before the wiring loom is cut.

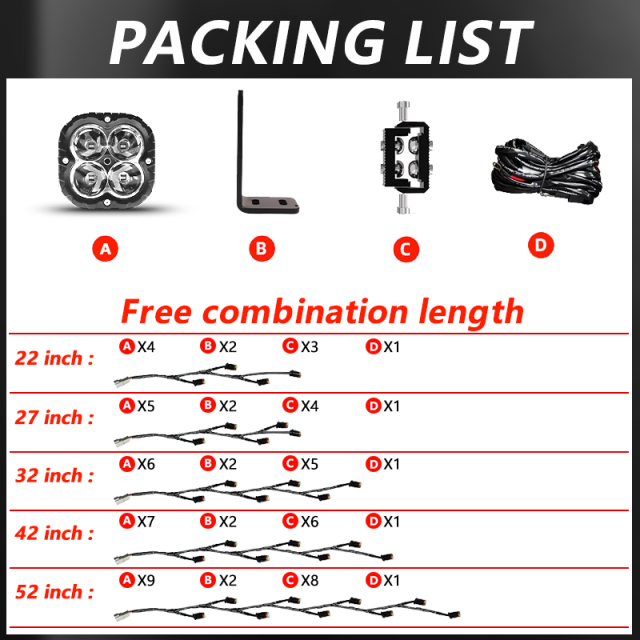

- Dry-fit everything before tightening — the kit carries L-shaped mounting brackets, joining brackets and a wiring loom. Set the pods and brackets on the vehicle first, so the bar sits level and the covers can still be fitted and removed afterwards.
- Plan the switching — the separate pod inputs mean the whole bar can run on one switch or be split across two. On an LED light bar for trucks used for both trail and worksite duty, work out that split with the installer before the loom is made up.
- Aim it on an unlit road at night — not against a wall. A truck LED light bar aimed too high lights the treeline and costs the driver the ground they actually need to see.
- Check the covers and the vent after fitting — every cover should seat fully, and nothing should be painted or taped over the housing vent; the sealing only does its job when both are true.
Applications
- Night trail running — an unlit track at speed, where the driver needs the next bend lit before the headlights reach it and the edges have to stay visible at the same time.
- Desert and mountain darkness — no street lighting, no ambient glow, and a fall-off beyond the headlights that is total. On this ground the bar is the main light rather than an accessory.
- Fog, rain, snow and dust — the yellow lens is the reason this bar stays useful when the weather closes in; swap from the white lens as conditions change instead of running one colour all year.
- Farm, quarry and worksite — lighting the yard, the loading bay or the track back to the gate after dark, on vehicles that live outdoors and are washed down with everything else.
- Stock and resale — buyers ranging LED light bars for trucks can hold one white LED light bar plus a set of yellow covers instead of three or four similar lights, and still cover clear and bad weather.
- Build projects — an off road LED light bar specified to the vehicle rather than the other way round, because the pods link to the width the build needs.
Specifications
| Property | Value |
|---|
| Bar length | 42 in |
| Bar wattage | 350 W |
| Bar output | 42,000 lm |
| Per-pod wattage | 80 W |
| Per-pod output | 6,000 lm |
| Pod format | 5 in square |
| Voltage | 12 V – 24 V |
| Beam pattern | Spot beam; spot, flood and combo lens covers available |
| Light colour | White 6000K / yellow 6000K |
| Housing | Black die-cast aluminium alloy |
| IP protection | IP67K standard; IP68 and IP69K customized |
| Mounting location | Bumper or overhead |
| ECE | Yes |
| DOT compliant | Yes |
White And Yellow Beam Combination
White for clear nights — the white 6000K lens gives a neutral, high-contrast field in which gravel edges, rock ledges and the shoulder of a track stand out, and the colour is close enough to daylight that obstacles read the way a driver expects. On a dry night it is the setting almost everyone runs, and it is why a white LED light bar is the version that moves first in dry-climate markets.
Yellow when the weather turns — the yellow 6000K lens does the opposite job. In fog, rain, snow and dust haze, white light bounces back at the driver; yellow penetrates further and throws less glare back, so the beam reaches the road instead of lighting the air in front of it.
Why specify both — brightness and penetration are two different problems. White shows the detail, yellow reaches through it, and one housing covers a clear summer night and a wet winter run. That matters most on LED light bars for trucks that work all year in mixed weather, where a second light for the wet season is money and shelf space nobody wants to spend.

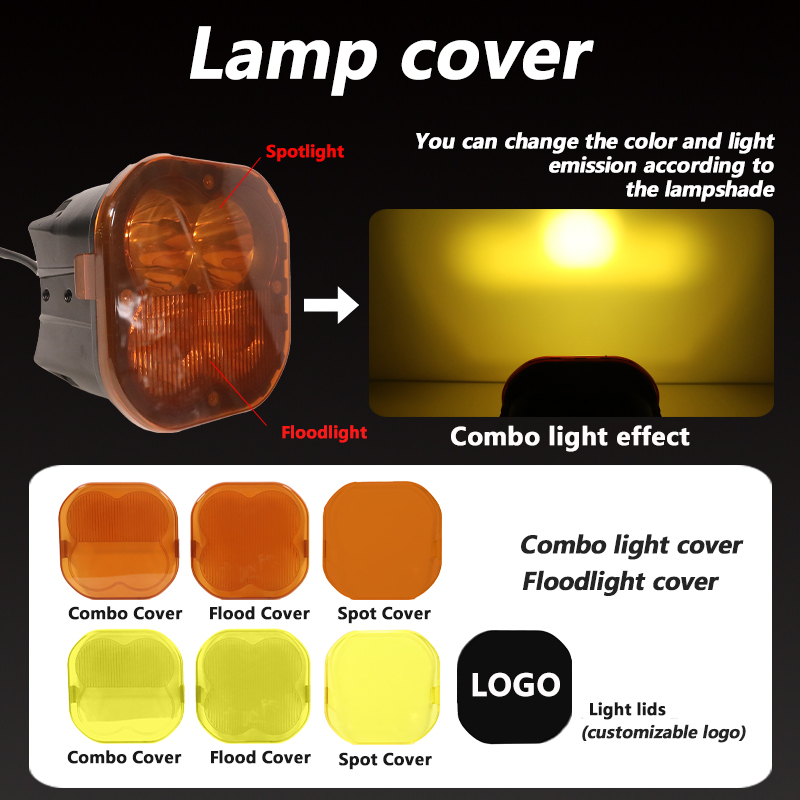

Changing the pattern — three lens covers do the rest: spot for long-distance focused lighting, flood for a broad coverage area, combo for both. The cover changes the colour and the way the light is emitted, so a single bar is re-lensed for a different job without touching the housing or the wiring.
Taking the second colour — most customers fit one colour and take a set of covers for the other. On a truck LED light bar that runs all year, a spare set of covers keeps both options open without putting a second light on the vehicle.
Ordering & Delivery
- Fix the configuration — pod count from 4 to 9 modules, the colour fitted as standard and the cover set in the box. If you range LED light bars for trucks across several vehicle classes, tell us the classes and we will map them onto two or three bar widths instead of five.
- Send artwork with the order — a custom LED light bar order can carry your logo on the light lid as well as on the packaging, so artwork is checked before production rather than after.
- Agree the terms per order — order quantity, price, payment terms and lead time are confirmed with your sales contact each time. Stock items move on 7-day fast shipping; anything built to your specification or logo is scheduled from that point.

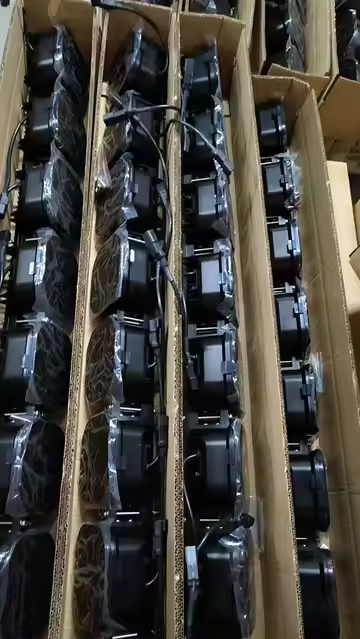

- Confirm packing and paperwork — pods travel in compartmented cardboard with the brackets, wiring and covers. If you need documents for customs or for your own resale, ask when the order is placed.
- Keep reorders identical — pods, covers and brackets come off one line, so a repeat order matches the first delivery. Quote the original order reference and the configuration is repeated — the kind of consistency LED light bar manufacturers are judged on at the second order rather than the first.
Scale & Supply Capability
JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.
FAQ
How much light does the 42-inch bar actually put out?
The 42-inch bar is rated 350 W and 42,000 lumens. That is enough to read an unlit track at speed rather than just pick out the verge — this off road LED light bar was sized for people who drive into places with no ambient light at all, where the headlights have already given up.
Can I change the bar from white to yellow?
Yes, and it is a lens change rather than a new light. The white lens gives a 6000K neutral field for clear weather; the yellow lens gives 6000K output that pushes through fog, rain and dust instead of bouncing back. Most buyers take the white LED light bar as the fitted colour and add a yellow cover set for the wet months, then swap as conditions change.
Will the same bar suit a 12 V pickup and a 24 V truck?
It is rated 12 V to 24 V, so one unit covers a 12 V pickup wiring setup and a 24 V commercial vehicle. Tell us which system your customer runs and we will confirm the wiring arrangement with the order, so you are not holding a separate LED light bar for trucks part number for each voltage.
How is the bar wired — one circuit or several?
Each pod has its own separate input, so you can put the whole bar on one switch or split it across two. On a 12V LED light bar installation the common approach is the full bar on one relayed, fused supply; if you want a couple of pods on their own switch for close work, agree that with the installer before the loom is made up.
Can I order extra lens covers or my logo on the light?
Both are possible. Spot, flood and combo covers are available as separate items, and the light lid can carry your logo on a custom LED light bar order. If yellow is a seasonal seller in your market, take a cover set with every bar so the customer is not buying a second light for the winter.
Does it mount overhead as well as on the bumper?
Both positions are listed for this bar. Bumper mounting keeps the light low and close to the ground for near-field work; overhead puts it above the driver's eye line, which is what most people want on a truck LED light bar covering distance at night. Tell us the vehicle and we will confirm what the bracket set covers.
