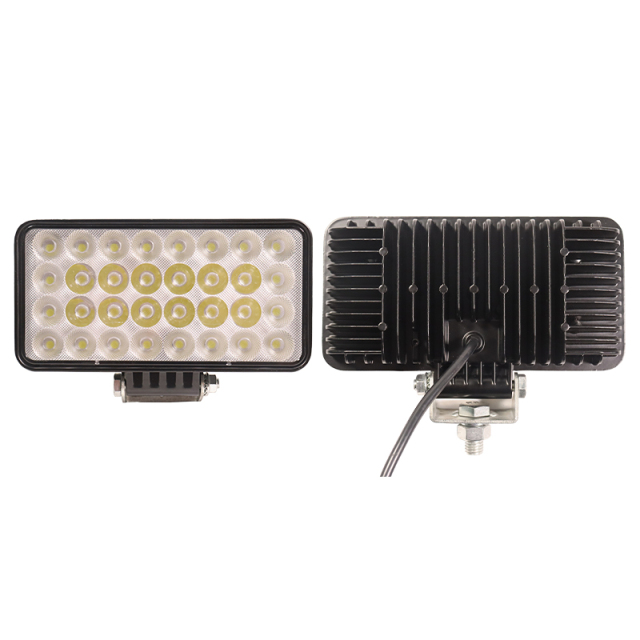

JOPOWER 7 inch 96w led work light 12v

LED working light designed for agricultural machinery, providing wider visibility at night for safer operation.
Brand
JOPOWER
Material
Aluminum die-cast housing
Waterproof rate
P67
Lifetime
50000H
Voltage
12-24V
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v
  • JOPOWER 7 inch 96w led work light 12v

Description

Product Overview

Some jobs only give you one place to bolt a light. This 7-inch 96 W work light is the biggest single lamp in our work-light range: a rectangular pod that throws one wide pool of white light from a single bracket, so a trailer deck, an implement width or a yard entrance is lit without a second mounting point, a second cable run or a second switch. The body is die-cast aluminium with a pivoting bracket underneath, and the cable leaves the housing already sealed, so fitting is a bolt-up job rather than a wiring project. It runs on 12–24 V, which means the same lamp suits a 12 V pickup and a 24 V truck or tractor, and it is built for the dust, rain and wash-down that farm and yard equipment live with. Shops that assemble custom off road lights for 4x4, farm and fleet customers, or LED driving lights for trucks, tend to settle on this size because one part number covers a lot of vehicles and one fixing covers a lot of ground. The gain over a small pod is real coverage; the cost is a bigger housing and a heavier draw on the circuit, and both are worth planning for before the order.

LED off-road light pods and light bars in white and yellow.Company about-us banner with factory exterior, trucks, cars, and certifications.Factory capability infographic with production lines, CNC workshops, and testing labs.OEM/ODM customization services infographic for automotive LED lighting products.Six-step customization process infographic from customer service to after-sales.

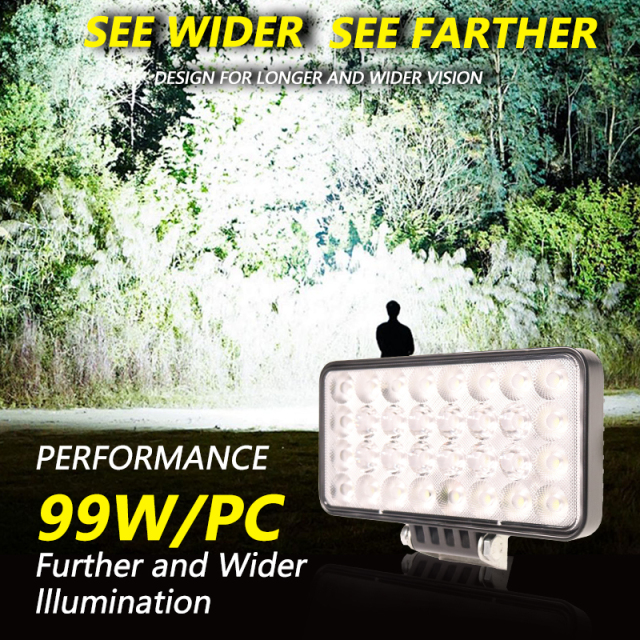

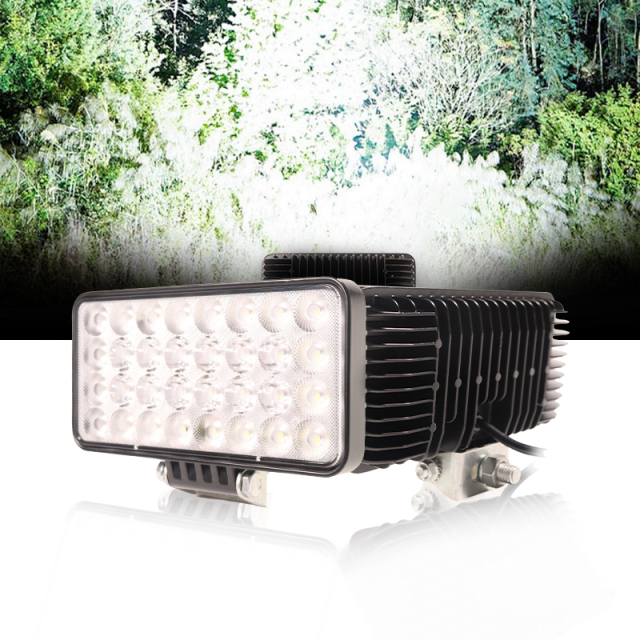

Light Output & Beam Pattern

  • Flood-style spread instead of a hotspot — the reflector cup and the lens spread the output across a working area, so you light the whole trailer bed or implement width rather than aiming a bright dot at one spot and guessing at the edges.
  • Deep light cup — the reflector behind the lens is deep, which shapes the outer part of the beam as well as the centre. That is why the edge of the pool still shows ruts, pallet edges and changes in the ground.
  • Clear, high-transmission lens — the lens is moulded in polymer or tempered glass depending on the build and kept clear, so the output reaches the ground instead of being diffused or tinted away.
  • White light that reads terrain — colours stay readable under this beam, so obstacles, livestock, crops and gravel edges are easier to judge than under a heavy glare.

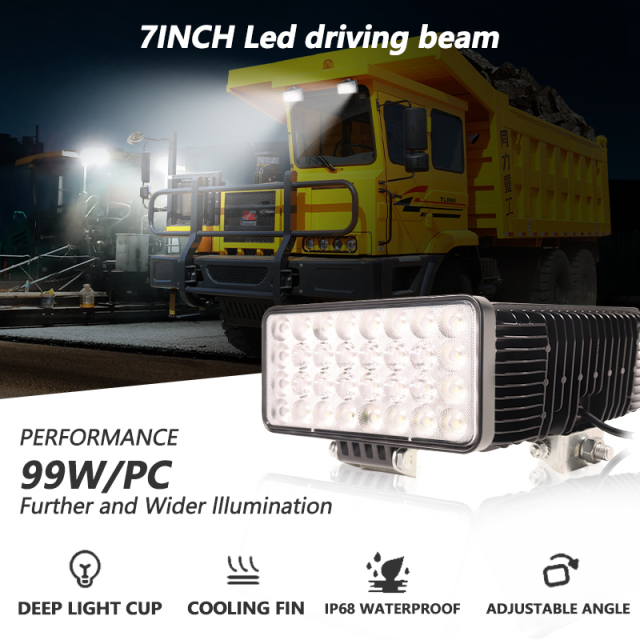

  • A work light with travel in it — most of these go out as work lights, but the output sits in the same class as our LED driving lights for trucks, so buyers also fit them where a farm truck or yard vehicle needs to see ahead as well as around.
  • Pairs cleanly with existing off road lights — if the vehicle already runs a bar or a pair of pods, aim this one lower and wider to fill the near field those lights leave dark.

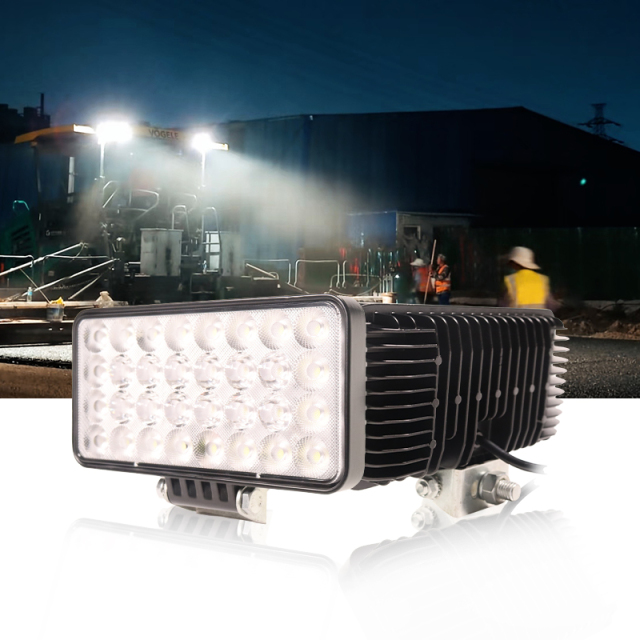

Housing, Sealing & Cooling

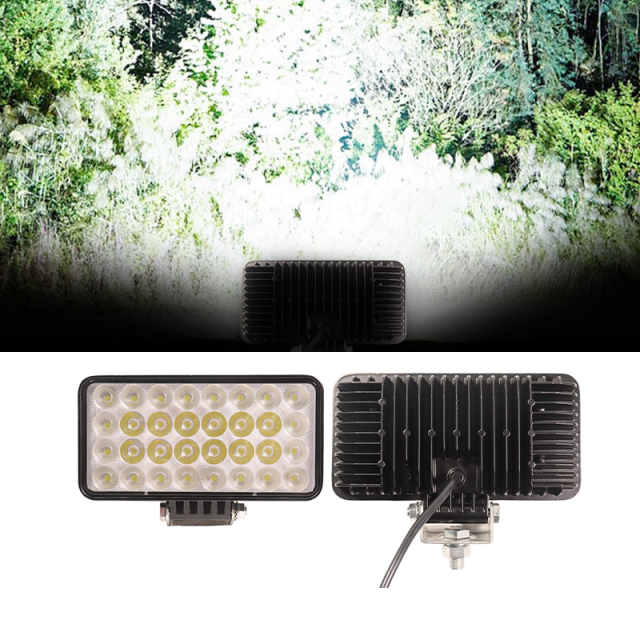

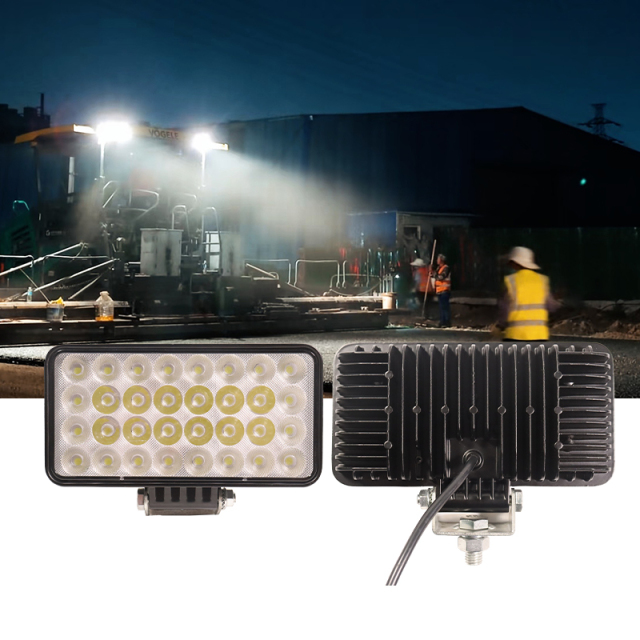

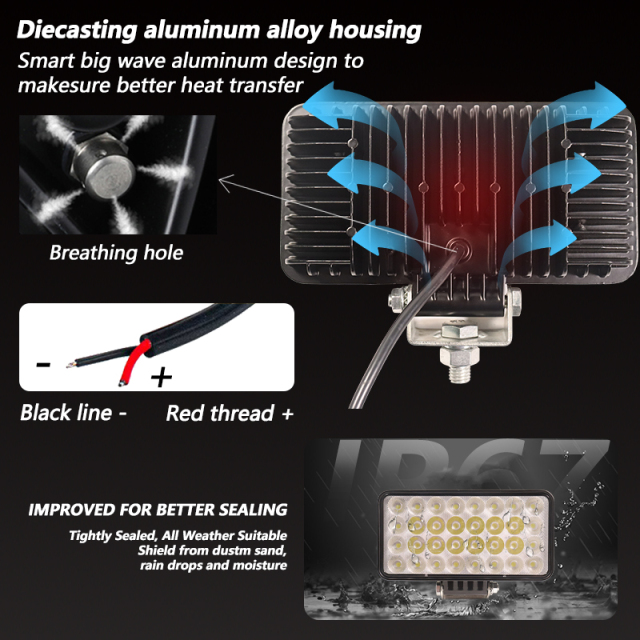

The housing is die-cast in aluminium alloy with a finned back, so the body itself is the heat sink. Heat is what shortens the life of an LED work lamp: as the emitter gets hotter, output drops and the chip ages faster. The fins give the casting enough surface area to shed that heat, and the same casting carries the mounting boss, so the bracket bolts to metal rather than to a plastic shell.

The breathing hole in the rear of the housing is there on purpose. A sealed lamp heats up while it runs and cools down when it is switched off; without a vent, that pressure change pulls moisture past the lens seal and you get fogging on the inside of the glass. The vent equalises the pressure while keeping water and dust out, which is what makes the IP67 rating hold up across a season of rain, pressure washing and temperature swings.

Inside, the LEDs sit on a circuit board that is screwed into the casting rather than simply glued in place, and the lens — polymer or tempered glass depending on the build — is clamped down over a full-perimeter seal. Each lamp is overheat-protected and checked in our in-house laboratory, and the finished units are rated to keep working from −40 °C to +85 °C, which covers a hard winter and a hot yard in the same part number.

The casting, the assembly and the seal are all done in our plant. As LED light bar manufacturers we hold these work lamps to the same sealing, aging and beam checks we run on the rest of the range, which is the practical reason a repeat order looks and performs like the first one.

Mounting & Wiring

  1. Allow the full 7-inch width plus clearance behind the housing for the fins and the cable, and keep the lens out of the operator's direct eye line.
  2. Back the mounting surface. The bottom bracket bolts through with the supplied bolt and nut. On thin trailer panel or plastic bodywork, add a backing plate so the lamp cannot flex the panel or crack it.

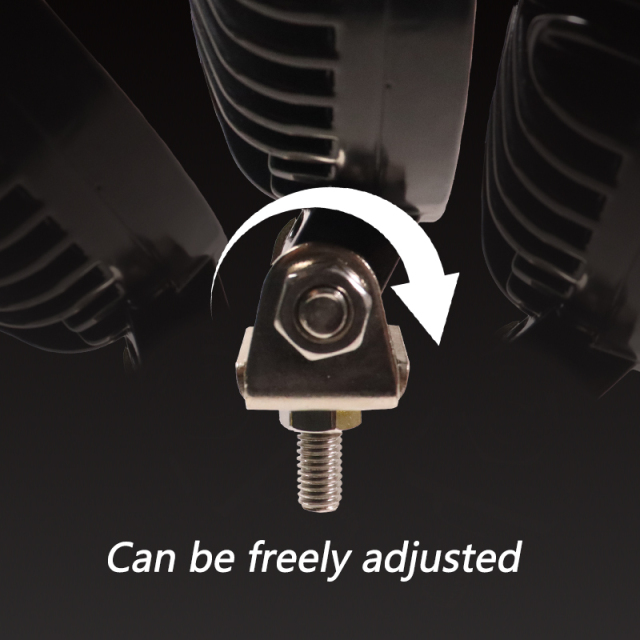

  3. Aim before you lock it down. Pivot the body on the bracket, check the pool of light on the ground after dark, then tighten. A work light aimed too high throws glare back at the operator all night.
  4. Match the polarity. The attached cable carries a red positive and a black negative lead. Wiring is plug-and-play at the lamp end, so the job is matching polarity at the supply end and then protecting the joint from water.
  5. Feed it through a relay and a fuse. At 96 W the lamp pulls real current, so trigger a relay from the switch instead of running the full load through a light-duty switch. If you are reusing an existing 12V LED light bar wiring kit, check that its relay, fuse and cable gauge are rated for this lamp before you connect it.
  6. Re-check after the first heat cycle. Run the lamp for a while, let it cool, then confirm the bracket bolts are still tight and that the cable is not resting on the fins or against a hot exhaust part.

Vehicle & Equipment Applications

  • Tractors and implements — front frame or cab roof, so the headland, the hitch and the implement are visible after dark instead of being guessed at.
  • Combines and forestry equipment — harvest and loading runs that start before dawn and finish late, where dust and chaff cut visibility exactly when the machine is working hardest.
  • Trucks, trailers and depots — cab rack or trailer neck for coupling up, checking loads and lighting a tilt tray or flatbed; this is the lamp most buyers add to their LED driving lights for trucks line-up as the rear-facing unit.
  • Heavy machines and yard equipment — telehandlers, loaders, excavators and skid steers where the factory work lamp is too weak for the job.
  • 4x4s, side-by-sides and ATVs — fitted as the wide near-field unit in a set of off road lights, on a bumper, rack or cage.
  • Fixed site lighting — workshop apron, gate, stockyard or driveway, where a sealed metal-bodied lamp survives outdoor mounting that a domestic floodlight does not.

7-Inch vs Smaller Pods

This lamp is the right answer when the job has to be covered from one place. A trailer with a single rack, a tractor with one spare bracket, a yard pole, a small machine with a short canopy — those are the cases where adding a second pod is not practical, and the extra width of a bigger lamp does the work of two.

Stay with a 4-inch pod if the mounting surface is short or thin, if the lamp will sit close to the operator's eye line, or if the vehicle is small enough that a 7-inch body hangs out of proportion — an ATV front rack is the obvious example.

The trade-offs are honest ones. The body is wider and deeper, so measure before you commit. The draw is heavier, so the relay, fuse and cable have to suit it. And on a vehicle that already runs a full set of LED driving lights, one 7-inch work light aimed at the rear often makes more sense than another forward-facing lamp.

If you source custom off road light sets from LED light bar manufacturers for resale, this lamp works as the large unit above the smaller pods: same housing style, same bracket logic, and a clear step up in output for the customer who wants one light instead of two.

Specifications

Power96 W
Input voltage12–24 V DC
Waterproof ratingIP67
Beam typeFlood / mixed beam
HousingDie-cast aluminium, finned
LensPolymer or tempered glass
LED lifespan50,000 hours
Operating temperature−40 °C to +85 °C (−40 °F to +185 °F)
MountingPivoting bottom bracket, adjustable angle
WiringAttached cable, red positive, black negative
CoolingRear finned heat sink with breathing hole
Body size7-inch class

Ordering & Delivery

  • What comes with the lamp — the light with its bracket fitted, the mounting bolt and nut, and the attached cable with red and black leads. For a standard installation nothing else is needed apart from the relay, fuse and switch on the vehicle side.
  • Branding and packaging — a logo on the housing, a different housing colour and shelf-ready packaging can all be built into an order of custom off road lights, so the lamp reaches the shelf as your product rather than as a generic box. Artwork and colour are approved against a sample before the run starts.
  • Dispatch — in-stock items move on our 7-day fast shipping schedule. Confirm the current dispatch date for your quantity and destination with your sales contact.
  • What to tell us before ordering — the machine voltage (12 V or 24 V), how much flat surface the bracket has to sit on, whether the lamps are replacing an existing 12V LED light bar wiring or going onto a new build, and the beam spread you want.
  • Terms — ask your sales contact to confirm price at your quantity, payment terms, packing and the delivery date in writing before the order is placed.

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

FAQ

Will this lamp run on both 12 V and 24 V?

Yes. The input range is 12–24 V DC, so the same lamp goes onto a 12 V pickup, a 24 V truck or a tractor without a converter. It draws more than a small pod, so feed it through a relay and a fuse rated for the load, and do not reuse an existing 12V LED light bar wiring unless that wiring is rated for this lamp.

Can one 7-inch lamp replace two smaller pods?

In most single-fixing jobs, yes. The flood pattern covers a trailer bed or implement width that a 4-inch pod would leave dark at the edges. Buyers who already run LED driving lights on farm trucks often keep small pods for the far field and use this lamp to fill the near field, which is usually the better arrangement than two large lamps on the same vehicle.

Can I put my own logo on the housing or change the colour?

Yes. A logo on the housing, a different housing colour and branded packaging can all be built into an order. As LED light bar manufacturers we already handle housing and packaging variants for our own range, so the artwork and colour are approved against a sample before production starts.

Can it be used as an auxiliary light on the road?

It is built as a work and auxiliary lamp and is widely used on trucks and off-road vehicles. Whether it may be used on a public road depends on the rules where the vehicle is registered and on the vehicle class — off road lights and work lamps are usually fitted for off-highway use, so check the local requirements before wiring it as a road-facing light.

The lens fogged up inside after a few runs. What happened?

That usually means the breathing hole in the rear of the housing has been blocked or sealed over. The vent is what lets pressure equalise as the lamp heats and cools, and it is part of how the IP67 seal works. Keep the vent clear, do not silicone over it, and check that the cable grommet has not been pulled loose during installation.
