Jopower Led Work Light, Flood Beam - road lights Manufacturer
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam

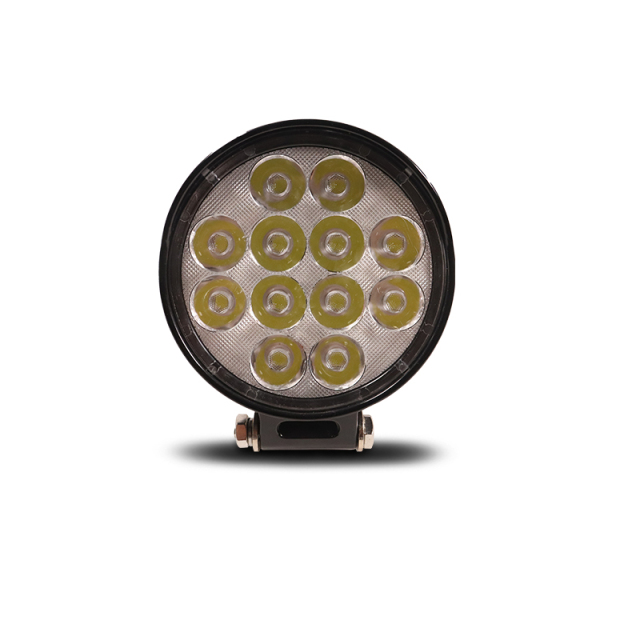

JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam

LED working light designed for agricultural machinery, providing wider visibility at night for safer operation.
Brand
JOPOWER
Material
Aluminum die-cast housing
Waterproof rate
P67
Lifetime
50000H
Voltage
12-24V
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam
  • JOPOWER 36w 4.5 Inch Tractor LED Work Light Flood Beam

Description

Product Overview

Fields, yards and farm tracks are hard on lighting, and a tractor working after dark needs something different from a road lamp. What the operator has to see is the ground about to pass under the wheels and the implement about to be lifted, not a bright point somewhere near the horizon. This 36W, 4.5-inch round work light is built around that job: a sealed, die-cast lamp with a flood pattern that lays a broad, even sheet of white light over the working area in front of or beside the machine. A pivoting bracket lets the beam drop close to the wheels for loader and hitch work, or lift to cover a wider strip when the machine is moving along a track. Inside, the LEDs sit on a board screwed into the aluminum body, so heat leaves through metal rather than through a plastic shell. We supply this lamp mainly to farm equipment dealers, parts counters and workshops that fit lighting for agricultural customers, and to estates and yards that keep their own machines working at night. It replaces the round work lamps fitted to older cabs, loader arms and implement frames, with the same bolt-on mounting idea and none of the bulb changes. We are LED light bar manufacturers by trade, and this lamp comes off the same lines with the same sealing and test routine. If your counter already sells LED offroad lights for road vehicles, it is the agricultural sibling: same construction, same bracket logic, a beam chosen for the ground rather than the distance. Stock it beside the LED driving lights for customers running mixed fleets, and the buyer who needs one of the three usually needs the others. - Flood pattern built for ground work — the spread covers the strip the machine is working and the implement in front of or behind it. It is the opposite of the narrow pencil beam that most off road lights for highway use are designed to throw, and it is why an operator can read a swath edge or a bucket corner without turning the machine. - Die-cast aluminum housing — a rigid cast body keeps the lens flat against its seat and stops the mounting ears flexing when the machine works over ruts and headlands. - Sealed against dust, rain and wash-down — the lamp is built for the cycle a farm machine lives in: mud and dust in the field, a wash-down at the end of the day, then a cold night. - Heat managed by the body itself — the board is fixed to the aluminum housing and the back is finned, so heat leaves the LEDs through metal; overheat protection is built in for long evenings. - Long service life — with no filament to burn out, the lamp is normally replaced with the machine rather than with the season, which matters when a failure means stopping a job in the dark. - Adjustable-angle bracket — slacken two bolts, aim, tighten. One bracket covers a close working angle for loader and hitch work and a flatter angle for travel. - Plug-and-play wiring loom — the lead ends in a connector rather than bare wires, so fitting is a wiring job, not a soldering job. - Same round footprint as what it replaces — the round format and bracket style are the ones used on 4x4 off-road lights and on the halogen work lamps already fitted to many cabs, so existing mounting holes often line up.

Banner showing LED pod lights, light bars, certifications and factory equipment.Company about page showing factory building, certifications and contact details.Infographic showing production lines, professional lab, CNC workshop and testing equipment.Infographic of LED lights with OEM/ODM, custom packing, color and logo.Six-step customization process infographic for contacting, ordering and receiving products.

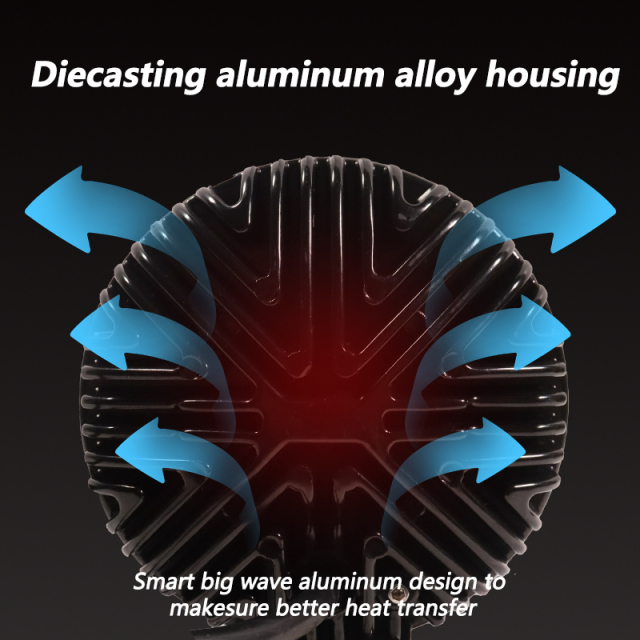

Housing, Sealing & Heat

Farm machinery is a hard place for a lamp: dust in the lens, mud on the housing, a pressure washer at the end of the day, then frost overnight. The LEDs sit on a circuit board screwed into the die-cast aluminum housing rather than pressed into a plastic shell. Metal-to-metal contact gives heat a short path out of the board, and it means the housing does more than hold the shape — it works as the heat sink. Fins across the back add surface area so heat leaves the lamp while it runs, which keeps output steady through a long evening instead of fading once the lamp warms up. Overheat protection is built in for the nights when a lamp stays on for hours. The lens, high-transmission polymer or tempered glass depending on the build, is seated against the housing face so the beam leaves cleanly and water runs off rather than sitting on the seal. The sealed body is rated against dust and water, which covers rain on a cab roof, wash-down water and the condensation that forms when a warm lamp meets a cold night. Three habits keep a sealed lamp healthy. Do not hold a high-pressure jet directly against the lens edge or the gasket line. Do not leave the lamp submerged. And wipe mud, slurry and fertiliser residue off the housing after a session, so the fins stay clear and can do their job. As LED light bar manufacturers we hold the test records, so if your listing, tender or customer needs the sealed rating confirmed in writing for a particular batch, ask us and we will put the tested figure on paper before you publish it.

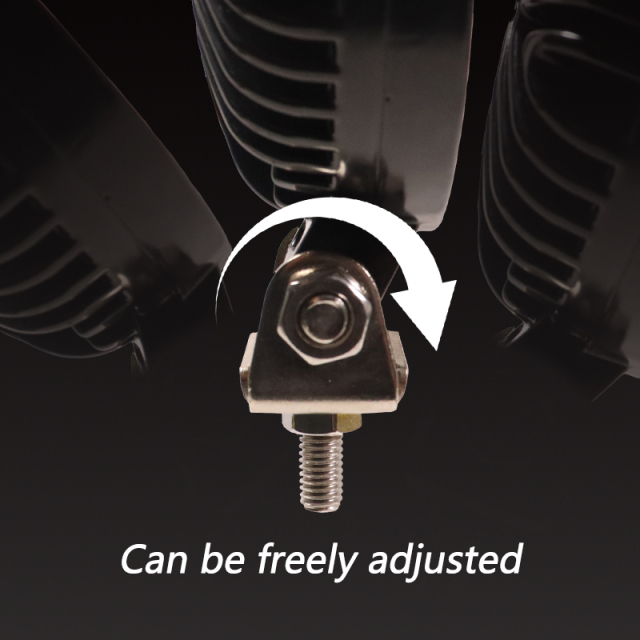

Mounting, Wiring & Aiming

  1. Choose the face — a flat, rigid metal surface on the cab roof, ROPS, loader arm, implement frame, trailer or bumper. Avoid plastic panels, glass fibre and anything that flexes under load.
  2. Check the swing — the lamp has to clear the exhaust, the linkages and the loader's travel, and must not become the lowest point on the machine.
  3. Bolt the bracket on with the supplied hardware and leave the angle bolts just snug. The two-bolt face is the same style used on 4x4 off-road lights, so an existing hole pattern often lines up.
  4. Aim it on level ground — point it down and slightly out for close work such as hitching or bucket work, or flatter for a wider strip when the machine is moving.
  5. Route the wiring clear of heat, sharp edges and anything that moves, with a small loop of slack at the bracket so changing the angle does not pull the cable.
  6. Connect the feed to the machine's 12V or 24V supply through its existing switch, and take the earth to clean chassis metal rather than paint or a thin panel. The connector is the plug-and-play type used across our offroad LED lights, so there is no crimping to do.
  7. Check the circuit — confirm the fuse and cable can carry the lamp, and use a relay with a dedicated feed if you are adding several lamps rather than loading a circuit that is already busy.
  8. Test it in the dark, look for glare off the cab, the mirrors or a white bonnet, then tighten the angle bolts and check again that nothing fouls when the loader or linkage is raised. If the lamp is going onto a road vehicle, check what your local rules allow for auxiliary lighting before you fit it.

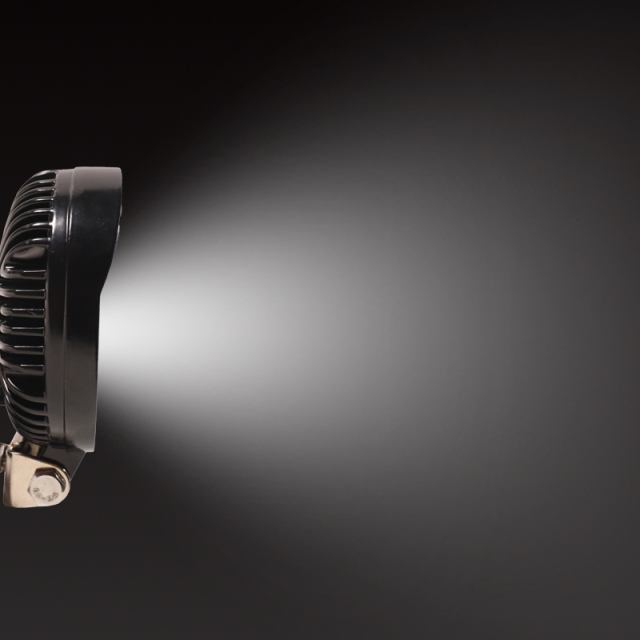

Flood Beam Applications

  • Field work after dark — mowing, baling, spraying or cultivating: the flood puts light on the strip the implement is actually working, so the swath edge, the row and the ground ahead of the wheels stay readable. That is a different job from the long throw that most off road lights are chosen for.
  • Loader, telehandler and yard work — aimed down and forward, the spread covers the bucket edge, the pallet and the ground around the machine, which is exactly where a narrow spot beam leaves you guessing.
  • Hitching an implement at night — mounted low on the rear of the machine, the wide pattern lights the drawbar, the PTO and the pins, so one person can line up a trailer without holding a torch.
  • Gateways, lanes and yard entrances — posts, culverts and tight corners come up wide and early instead of appearing suddenly at the edge of a beam.
  • Combines, forestry equipment and wider machines — the same lamp fills the area around a header, a grapple or a loading bay, where peripheral vision matters more than distance.
  • Trailers and implement frames — bolted to a trailer it lights a ramp, a load or a recovery bed; on an implement frame it covers the working width.
  • Wide machine coverage — tractors, forestry equipment, combines, loaders, telehandlers, trucks, trailers, SUVs, ATVs, UTVs, golf carts and other heavy machines all appear on the fitment list for this lamp.
  • When a flood is the wrong choice — if the job is reading a track far ahead at speed, reach matters more than spread, and the LED offroad lights and bars in the range are the place to look.
  • Pairing it with a bar — where a yard wants both a lit work area and a long view, this lamp covers the first and LED light bars cover the second, both running from the same feed.

Specifications

Product typeRound LED work light, flood beam
Rated power36 W
Input voltage12-24 V DC
Beam patternFlood
HousingDie-cast aluminum
LensHigh-transmission polymer or tempered glass
SealingIP67
Rated life50,000 hours
Operating temperature-40 °C to +85 °C
MountingAdjustable-angle bracket
ConnectionPlug-and-play wiring assembly
Typical fitmentTractors, loaders, telehandlers, combines, trailers, trucks, SUV, ATV, UTV

Ordering & Delivery

Dispatch7-day fast shipping
Order quantityConfirmed with your sales contact for each order
CustomizationSpecification, style, size, color, logo and packaging for custom off road lights programmes — as LED light bar manufacturers we build to your brief, not just to our own catalogue
Artwork approvalLogo and colour signed off before production starts
PackingStandard carton as shipped; branded cartons to your artwork
Range on one orderWork lights, whip lights, switch panels and LED light bars
Matching lightsLED driving lights and fog lights from the same range
CertificationCE, RoHS and US DOT, as stated for our production
Sealed ratingIP67 on our specification sheet; confirm the tested figure for your batch before printing
WarrantyAsk your sales contact for the current terms in writing
SamplesAsk your sales contact about availability and cost
Lead timeConfirmed with your sales contact when the order is placed
ContactPaul, +86 15362436281 (call or WhatsApp) · Szvictory2005@163.com

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

FAQ

Is this a flood beam or a spot beam, and what does it put on the ground?

It is a flood beam. The light is spread wide and kept fairly even across the working area, so the ground immediately in front of and beside the machine is lit rather than one bright patch in the distance. If you compare it with LED driving lights aimed down a lane, the difference shows within a few metres: less reach, far more usable width. That is what you want for loader work, hitching, mowing or checking a load; for reading a track far ahead, a spot or a bar does the job better.

Will the same lamp work on a 12V pickup and a 24V tractor?

Yes. The input range covers 12-24 V DC, so one part number serves both, provided the machine has a standard negative earth. Check that the switch and fuse on the circuit you are tapping can carry the lamp, and use a relay with a dedicated feed if you are fitting several. Because of that range, it is one of the offroad LED lights in our range that a stores department can stock once and fit almost anywhere.

What comes in the box?

The lamp itself, the adjustable mounting bracket with its bolts, and a plug-and-play wiring loom. There is no dash switch in the box — the lamp runs from the machine's own switch or from a switch panel you already have. The loom is the same plug-and-play type we fit across our LED offroad lights, so the connection is a plug rather than a crimp.

Can it replace the round work lamp already bolted to my tractor?

Usually, yes. The round format and bracket style are the same ones used on 4x4 off-road lights and on the halogen work lamps fitted to many older cabs, so existing holes often line up. Measure the old bracket and its bolt spacing before you order, or send us a photo of the mounting point and we will tell you whether the bracket will sit on it.

Can we have our own logo and housing colour?

Yes. This is the kind of work our custom off road lights programme is set up for: specification, style, size, color, logo and packaging, agreed before production starts. For a work-light line the two changes that make the most difference to a shop's own brand are the logo on the housing and the carton artwork, and both are handled as part of the same order.

Should I fit this 36W lamp or a larger, higher-output one?

Choose by the job rather than by the number. This 4.5-inch lamp is the one for close and mid-range work: the ground around the machine, the implement, the drawbar, a load. If you need to read a track or a field boundary much further ahead, a bigger single lamp gives more reach from the same mounting points. Many yards end up with both. If reach is the priority, the off road lights in our range are the place to start, and the LED light bars cover the same need over a longer, wider spread.
