JOPOWER 3.5" LED Cube Pods Work Lights for Jeep

The JOPOWER 3.5" LED Cube Pods Work Lights are compact and powerful, designed for Jeeps to provide excellent illumination for off-road adventures and tough conditions.
Brand
JOPOWER
Material
Aluminum die-cast housing
Waterproof rate
P67
Color temperature
6000k
Lifetime
50000H
Working Temperature
-40-80℃
LED Color
Yellow
Working voltage
12-24v
  • JOPOWER 3.5" LED Cube Pods Work Lights for Jeep
  • JOPOWER 3.5" LED Cube Pods Work Lights for Jeep
  • JOPOWER 3.5" LED Cube Pods Work Lights for Jeep
  • JOPOWER 3.5" LED Cube Pods Work Lights for Jeep
  • JOPOWER 3.5" LED Cube Pods Work Lights for Jeep
  • JOPOWER 3.5" LED Cube Pods Work Lights for Jeep

Description

Product Overview

  • The JOPOWER 3.5" LED Cube Pods are a compact square auxiliary light for Jeep and 4x4 builds that need a sharp yellow beam from a small housing. Each pod pairs a die-cast aluminum body with a sealed lens, so it can sit on a front bumper, bull bar, A-pillar bracket or roof rack without crowding the nose of the vehicle or catching on branches.
  • Shops buy them in pairs and fours to replace tired halogen auxiliary lamps, to fill the gap where a factory fog light gives up, or to add work lighting to a recovery rig. Control is normally taken to the dash: the pod leads run back to an off road light switch panel rather than a single loose toggle under the seat, which keeps the cabin tidy and lets each circuit be isolated on its own.
  • The footprint is what makes the format useful. A 3.5-inch cube slots between a winch and a grille, tucks behind a windscreen hinge bracket, or mounts two-up on a rear rack where a long bar would never fit. The metal housing takes knocks that plastic pods do not, and the yellow output is chosen for the conditions where white light comes straight back at the driver — dust hanging in the air, fog, snow and heavy rain.
  • For a distributor or accessory shop, the practical advantage is repeatability: one mounting pattern, one wiring layout and one beam character across every set, so staff can fit the same pod to a Jeep, a pickup, a UTV or a tractor without relearning the install. Buyers building out a range of led offroad lights usually keep these on the shelf beside a light bar for distance and a small flood pod for close work.
  • 3570 high-intensity LED chips — the array gives these pods the kind of usable output buyers already expect from premium led offroad lights, without pushing the housing size up.
  • Yellow beam for dirty air — yellow light does not bounce straight back off dust, fog or snow the way bright white does, so the driver keeps a readable picture of the ground ahead instead of a wall of glare.
  • Sealed as one unit — lens, gasket and body close together as a single protected assembly, so mud, sand and standing water stay on the outside.
  • Heat handled at the source — thickened aluminum fins pull heat off the LED board, the same thermal approach we use across our led driving lights for trucks, and that is what keeps output steady on a long night run.
  • 12V and 24V without a converter — one pod covers light trucks, tractors and plant equipment, which cuts down the number of variants a distributor has to hold.
  • Panel-ready control — each circuit can be landed on a custom switch panel, so the driver switches individual pods instead of dumping everything onto one master toggle.
  • Easy to build into kits — shops that assemble custom off road lights packages can pair these pods with a bar, a wiring loom and a panel and sell the whole set as a single install.

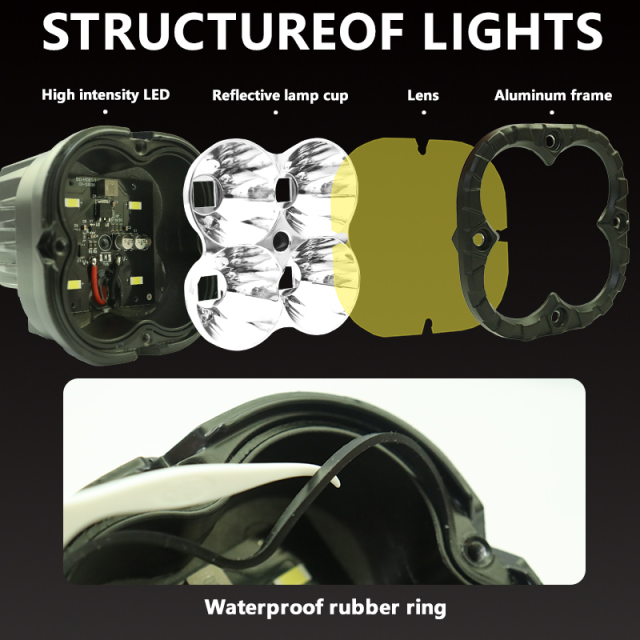

Housing, Lens & Sealing

Few led offroad lights live in a worse place on a vehicle: low on the nose, in the spray, taking stone chips and the occasional branch. The pod is built around that reality. The body is die-cast aluminum rather than molded plastic, so it holds its shape when a bracket takes a hit and it moves heat away from the LED board instead of trapping it.

The front is a shock-proof polycarbonate lens rather than glass, which matters on gravel roads and in cold weather. Behind it sits a rubber sealing ring compressed between the lens and the housing; together with the sealed plug at the back, that is what earns the IP67 rating and keeps the reflector and board dry through river crossings and pressure-washer spray.

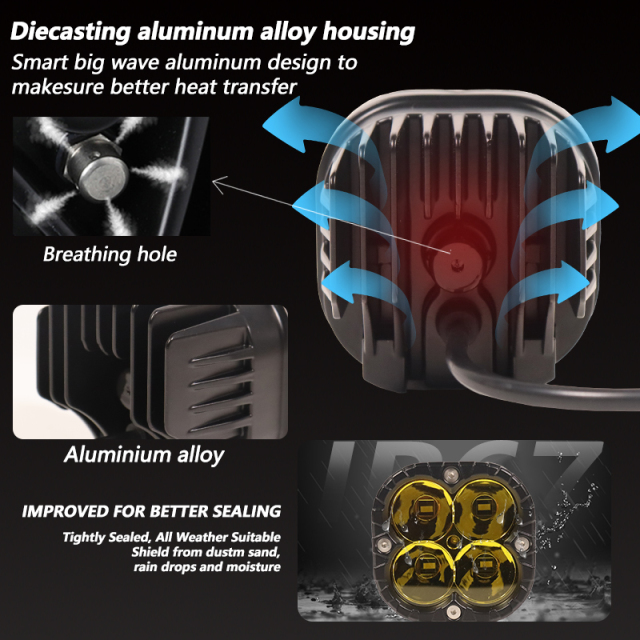

A small breathing hole equalizes pressure inside the housing as the pod heats and cools. Without it, the lens draws moisture in through the gasket every time the light goes out in cold air; with it, the internal air moves without letting water past the seal.

The heat sink is part of the same die-cast piece, with thickened fins that add surface area across the back of the housing. Heat is the main reason auxiliary lights fade or fail early, so the fins are sized for continuous use rather than short bursts.

Every batch is checked before it leaves the factory: salt spray for corrosion, high and low temperature cycling, aging runs, a darkroom beam check and a lumen reading on the integrating sphere. If your market needs the test records that go with a shipment, ask your sales contact and we will confirm what is available.

Installation & Switch Panel Wiring

  1. Plan the positions before drilling anything. Check the clearance behind the bumper, A-pillar or rack, and remember the pod needs room to swing through its aiming arc.
  2. Bolt the side bracket on and leave the main bolt snug rather than fully tight; you will lock it down once the beam is aimed.
  3. Route the pod leads clear of exhaust, fan blades and suspension travel, and sleeve them wherever they pass through metal.
  4. Decide the control point. Most builds land the leads on a custom switch panel in the cab or under the bonnet, with one switch per circuit so a pair can be run on its own.
  5. Fit an inline fuse on each circuit close to the power source, sized to the wiring you are using, before anything reaches the switch.
  6. Terminate positive and ground on the off road light switch panel, keeping the ground return short and landed on bare chassis metal.
  7. Check the panel's voltage rating. A 12v switch panel is the usual choice on a Jeep or pickup; on a 24V truck or tractor, confirm the panel and its relay are rated for 24V before you connect.
  8. Aim the pods against a wall after dark, lock the bracket bolts, and label the switches so the next driver knows which circuit does what.

Applications

  • Jeep and 4x4 trail builds — bumper corners, A-pillar brackets and roof racks are the usual homes; pairing the pods with a jeep switch panel keeps the extra circuits off the factory stalk and away from the driver's knee.
  • Work trucks and fleet upfits — service bodies and flatbeds use a pair aimed at the rear for hitching and load checks, the sort of job led driving lights for trucks are made for, at a fraction of the size of a bar.
  • Farm and agricultural equipment — tractors, sprayers and loaders run 24V systems and work in dust for hours; the yellow beam shows the furrow edge without blinding the operator.
  • ATV, UTV and side-by-sides — a single pod on a front rack or cage bar adds useful light to a machine with a small charging system.
  • Trailer decks and boat work areas — mounted high and aimed down, a pair lights a deck, ramp or slipway without wiring a permanent lamp.
  • Workshop, yard and gate lighting — a pod on a post or roller door gives a weather-sealed work light for late jobs.
  • Recovery and camp setups — buyers assembling custom off road lights kits often group these pods with a winch and a compressor so the whole rig is switched from one place.

Specifications

LED chips3570 high-intensity LED
Light colorYellow
Color temperature3500K yellow / 6000K white
Operating voltage12V–24V DC
Waterproof ratingIP67
HousingDie-cast aluminum
LensShock-proof PC
Heat managementThickened die-cast aluminum heat sink
Working temperature-40 °C to 80 °C
Rated lifeUp to 50,000 hours
MountingAdjustable side bracket
ConnectionSealed two-way plug, red and black leads

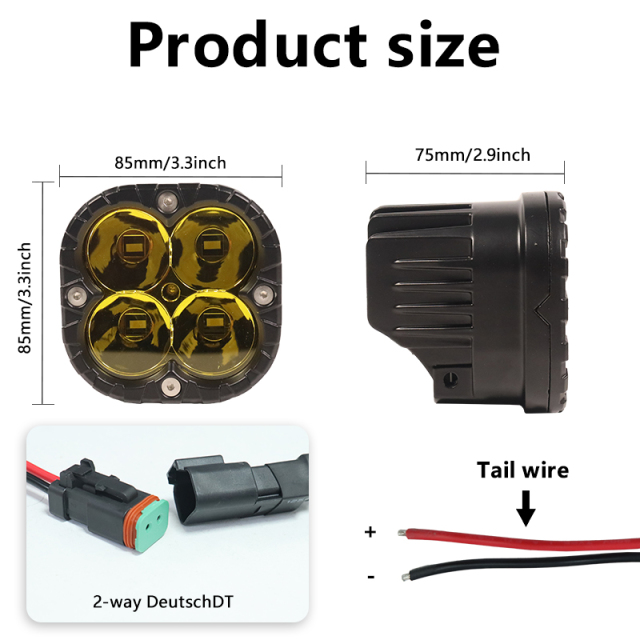

Pod size3.5 inch

Ordering & Delivery

  1. Send the build list: quantities, beam color, and the vehicles or equipment the pods will be fitted to.
  2. Say how the off road lights will be switched — a cab panel, an engine-bay panel, or a wiring loom you build in-house.
  3. Tell us whether the order is part of a custom off road lights kit with a bar, brackets or a wiring loom, so the pieces are packed and labelled together.
  4. If the pods are going onto a jeep switch panel or another vehicle-specific panel, send the switch layout and the labeling you want.
  5. Confirm whether the loom ends at a 12v switch panel or a 24V panel, since the relay and fusing follow the system voltage.
  6. Confirm quantities, lead time and shipping terms with your sales contact. In-stock items move on our 7-day fast shipping.
  7. Tell us the destination and the documentation your market needs; we will confirm what is available for that shipment before it is booked.

Scale & Supply Capability

JOPOWER is the brand of our own factory in Dongguan, China, founded in 2010 and run by a team of 20–30 people with 15 years of vehicle lighting production behind them. We add 5–10 new styles every month, hold EU, CE, RoHS and US DOT certification, and put every unit through three full inspections before it leaves us. Because the designs are developed in-house, we can tailor specification, style, size, color, logo and packaging, and items in stock ship in as little as 7 days.

Company About Us page showing factory building and certification logos.Factory capabilities infographic showing production facilities, CNC workshops, and testing labs.Service infographic showing customizable lights, packaging, colors, and parts.Customization process infographic outlining six steps from contacting service to after-sales.

FAQ

What materials are used in the pods?

The housing is die-cast aluminum with a shock-proof polycarbonate lens, and a rubber sealing ring sits compressed between the lens and the body. The back carries a sealed two-way plug with red and black leads, so there are no exposed terminals to corrode. That combination — metal body, PC lens, compressed gasket — is what lets the pod shrug off dust, shock and moisture on a trail.

Can the pods or the matching switch panels be customized?

Yes. Size, color, logo and packaging can all be tailored, and the switch side is built to order as well: switch count, layout, labeling and the panel face itself can be matched to your range. For a private-label launch we can line the pods up with a custom switch panel so the light and its control read as one product family. Send the specification you have in mind and we will confirm what is practical for your quantity.

What voltage range do the pods need?

Any 12V or 24V DC system, with no converter in between. That covers most Jeeps, pickups, SUVs, UTVs, tractors and plant equipment, and it means a 24V truck and a 12V Jeep can run the same pod. It is the reason this model suits distributors with a mixed fleet and utility customer base — one line of led offroad lights covers the whole vehicle park.

How should I maintain the pods?

Wipe the lens with a soft cloth and mild soap, and rinse rather than blast: high-pressure water aimed at the gasket can push past a seal that road spray would never trouble. Check the bracket bolts after rough trips, look over the gasket whenever the lens is off, and inspect the terminations at the 12v switch panel once a season for corrosion. A dab of dielectric grease on the plug keeps moisture out of the pins.

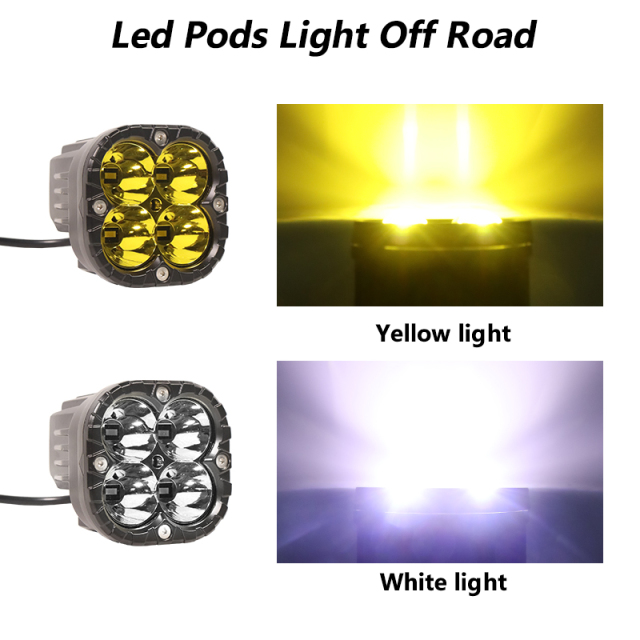

Should I order the yellow or the white beam?

This pod is built around the yellow beam, tuned to 3500K because it does not wash out in dust, fog, snow or heavy rain the way bright white does. White light reaches further on a clear night, and the specification sheet for this housing also carries a 6000K white figure, so if your customers split between the two, tell us the mix you need and we will confirm what can ship. On a work truck doing led driving lights for trucks duty all year, yellow is usually the version customers keep fitted through the winter.

Will the pods fit a Jeep Wrangler or a truck bumper?

The pod is a compact cube with an adjustable side bracket, so it mounts to flat surfaces, tube bars and purpose-made A-pillar brackets rather than needing a vehicle-specific housing. On a Wrangler the usual spots are the bumper ends, the A-pillar and a roof rack; on a pickup, the bumper or a bed rack. If you are adding several circuits at once, a jeep switch panel in the cab keeps the dash readable and gives each pair its own switch.

Can I run several pods from one switch?

You can, but most installers give each pair its own circuit. Putting two pods on one switch of an off road light switch panel means a single failure takes both out, and it makes aiming or fault-finding harder later. Group the pods by job instead — front pair on one switch, rear work pair on another — and keep the fusing per circuit rather than sharing one fuse across the set.

What should I confirm before ordering?

Three things: the beam color you want, the housing finish or logo if the pods carry your brand, and the panel or wiring the pods will connect to. Bracket type is worth confirming too when the pods go onto a tube bar rather than a flat surface. Tell your sales contact how the off road lights will be used and we will match the configuration to the job.
